Cruising Speed: 11
Maximum Speed: 12
CONSTRUCTION
With a remarkable portfolio boasting nearly 300 yachts and a vast production space spanning over 300,000 square meters across six shipyards in Italy, Benetti Yachts stands as a pioneer in the realm of modern superyachts. Their legacy began in 1961.
Guided by a client-centric ethos, Benetti Yachts places a strong emphasis on technical precision, striving to craft yachts that are not only functional and innovative but also exude unparalleled style and comfort. A part of the Azimut Benetti S.P.A., Benetti continues to uphold its reputation for excellence.
NAMASTE''s construction features a fiberglass hull and a GRP superstructure. During its construction, the sun deck of this Benetti yacht was extended by 4.92 feet (1.5 meters), further enhancing its spacious outdoor living area, and giving added sunshade to the bridge aft deck dining area.
DIMENSIONS
General
Length Overall (L.O.A.): 121.00 feet (36.89 meters)
Length at Waterline (L.W.L.): 103.61 feet (31.58meters)
Beam (Molded): 26.67 feet (8.13 meters)
Min Draft: 6.43 feet (1.96 meters)
Max Draft: 7.07 feet (2.31 meters)
Tonnage: 298 gross and 259 displacement tons
Capacities
Fuel: 10,990 US Gallons (41,601 liters)
Water: 2,104 US Gallons (7,964 liters)
Holding Tank: 713 US Gallons (2,699 liters)
Lube Oil: 144 US Gallons (545 liters)
Waste Oil: 144 US Gallons (545 liters)
MACHINERY
Engines
Engine Type: (2) MTU 12V2000 M72
Gearboxes for Main Engines: ZF 300
Drive: Inboard
Propellers: 5 Blade Nibril 1,400mm x 1,300mm
Propeller Shafts: Stainless Steel 110mm
Struts: Bronze “I” 40”x 17”
Port – Model #: MTU 12V2000 M72
Port – Serial #: 535 108 655
Hp: 1,468
Port - Hours as of June 26, 2024: 5,494
Stbd. – Model #: MTU 12V2000 M72
Stbd. – Serial #: 535 108 656
Hp: 1,468
Stbd. - Hours as of June 26, 2024: 5,499
SLOW
RPM: 700
% LOAD: 21
GPH PER ENG: 3
SPEED FROM GPD IN KNOTS: 5.3
CRUISE
RPM: 1,400
% LOAD: 47
GPH PER ENG: 20
SPEED FROM GPD IN KNOTS: 10.8
CRUISE
RPM: 1,600
% LOAD: 51
GPH PER ENG: 30
SPEED FROM GPD IN KNOTS: 12.1
CRUISE
RPM: 1800
% LOAD: 57
GPH PER ENG: 38
SPEED FROM GPD IN KNOTS: 13.1
CRUISE
RPM: 2,050
% LOAD: 73
GPH PER ENG: 55
SPEED FROM GPD IN KNOTS: 14.4
FULL
RPM: 2,298
% LOAD: 98
GPH PER ENG: 73
SPEED FROM GPD IN KNOTS: **15.1
** Average speed of opposite runs
Generators
Generators: (2) Northern lights 90 KW 400 volt/50Hz
Generator Fuel Consumption: 2.6 Gph / 10 L/h
Generator Hours: Port 1,084 Total Hrs. Since Top End Overhaul (05/26/2023)
Stbd. 963 Total Hrs. Since Top End Overhaul (05/26/2023)
Port Model #: M1064H-90KW
Port Serial #: 0642-48553
Port Kilowatts: 90
Port Voltage: 220/380
Port RPM: 1,500 @ 50Hz
Port Hours as of June 26, 2024:14,484
Port Hours at Top End Overhaul - MAY 2023:13,400
Port Hours since Top End Overhaul:1,084
Stbd. Model #: M1064H-90KW
Stbd. Serial #: 0095576-0820
Stbd. Kilowatts:90
Stbd. Voltage: 220/380
Stbd. RPM:1,500 @ 50Hz
Stbd. Hours as of June 26, 2024:14,682
Stbd. Hours at Top End Overhaul - MAY 2023:13,719
Stbd. Hours Since Top End Overhaul: 963
Transmissions
Type: ZF
Model: ZF 3351
Reduction Ratio: 4,000:1
Electrical
Shore Power: (1) x 480 3 Phase or (2) x 240 3 Phase/Multi input 100amp
Batteries: 24v
Shore transformers AC converters: (2) A/SEA power systems
Lights: 24 Volt DC and 110/220 Volt AC
250 Volt Shore Receptacles: (2) x 100 AMP 3 phase
480 Volt Shore Receptacles: (1) x 100 AMP on power reel 3 phase
Black Water Holding Tank: Techmar, model Echomar 16 treatment system
Air Conditioning
Type: CUCG ANSI/AHRI 590 with 3 compressors (New, Dec 2022)
Other Machinery
Naiad Dynamics Zero Speed Model 525, hydraulic 36” x 98” fins
Bow Thruster: Naiad VT60, hydraulic 7 blade in 20” tube
Steering System: BCS / Twin Disc
Fuel System: Alpha Lava Fuel Polishing System
Fuel Separator & Filtration: Alpha Laval M IB 303 S13 / Racors
Sewage System: Ecomar 16
Freshwater System: (2) Gianneschi
Watermakers: (1) IDROMAR Model MC95 1,400 GPD
COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS
Communication Systems
STARLink: 2-Systems (Marine)
SAT Com: KVH V11 (Not in use due to STARlink)
Telephone System: Thompson
SSB: Sailor 6,301
VHF Fixed: (2) Sailor 6,222
VHF Handheld: (6) Sailor
Cellular Phone System: Pepwave
Intercom: Thompson
Navigation Systems
Radar: Furuno 72-mile radar (New, 2023)
Gyrocompass: Plath Navigator X Mk 2
Magnetic Compass: C. Plath Jupiter
Auto Pilot: Plath Navipilot 4,000
Depth Sounder: (2) Furuno
GPS: (2) Furuno
Weather FAX: Navtex 700
Ships Computer: Team Italia “BEST”
Laser Plotter: Noble Tech-Time Zero
Wind/Speed Log: Furuno
Navtex: Furuno NX 700
AIS: Furuno FA 150
EPIRBS: (2) Sailor and MC Murdo Batteries
Entertainment System
Video Equipment
Master Stateroom: SAMSUNG TV on power lift & APPLE TVs
Guest Staterooms: SAMSUNG TV & APPLE TVs
Salon: SAMSUNG TV on power lift, SONY DVD & APPLE TV
Sky Lounge: 75” SAMSUNG & APPLE TVs, SONY DVD
Captain’s Cabin: SAMSUNG TV
Crew Lounge: SAMSUNG & APPLE TVs
Upper Aft Deck: SAMSUNG & APPLE TVs
Sat. TV: KVH Tracvision
Crew Mess: CCTV System with 4 Cameras + Monitor
Throughout the Vessel; Creston AV system with remote controls
Audio Equipment
Master Stateroom: Marantz and SONY AV/Tuner Receiver
Guest Staterooms: SONY AV/Tuner Receiver
Salon: Marantz AV/Tuner Receiver
Sky Lounge: SONY AV/Tuner Receiver
Sun Deck: SONY AV/Tuner Receiver
Crew Lounge: SONY AV/Tuner Receiver
Other Electronics
Compass: Northrup Grumman C Plath
Autopilot: Sperry Navipilot 4000
AIS: Furuno FA-150 Class A
GPS: (4) Hatteland Monitors
Chart Plotter: (2) Furuno Navnet
Chart Plotter: Time zero in GPS’s
VHF: (2) Sailor 6222 & 6248 + Sailor 6,204 in crew mess
Mf/hf: Sailor 6,301
Handheld VHF’s: Sailor + Icom
Inmarsat C: Sailor + STARLink
Hailer: Intercom system, Vingtor
Message Terminal: Sailor 6,006
Fish Finder: In each Furuno Navnet
Depth Finder: In above + (2) Furuno rd. 33 Furuno rd. 33 in crew lounge
Speed Log: In GPS’ + (2) Furuno rd. 33
Sw. Temp. Gauge: Furuno rd. 33
Computer: (Details coming soon)
Fax, printer, etc.: HP all in one
Rudder Indicators: At helm + emergency backup steering station
Monitoring System: Cantalupi Ship in electrical control room
Other: FLIR thermal camera
GALLEY & LAUNDRY EQUIPMENT

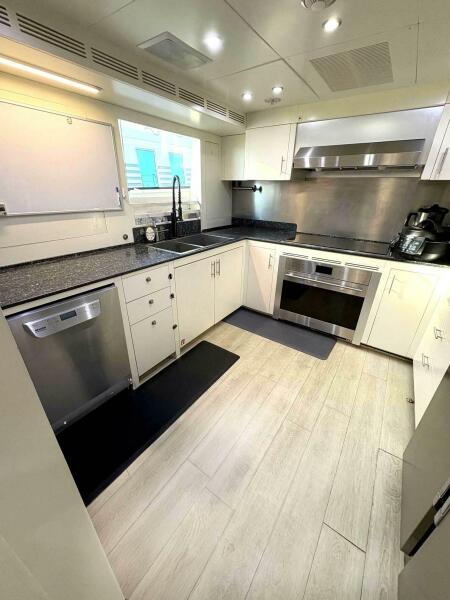

Main Galley Equipment
Oven: (1) Wolf 30” wall oven (October 2023) + (1) Wolf 24” steam oven (October 2023)
Cook Top: Induction Hub, Wolf 36” with 5 burners, (October 2023)

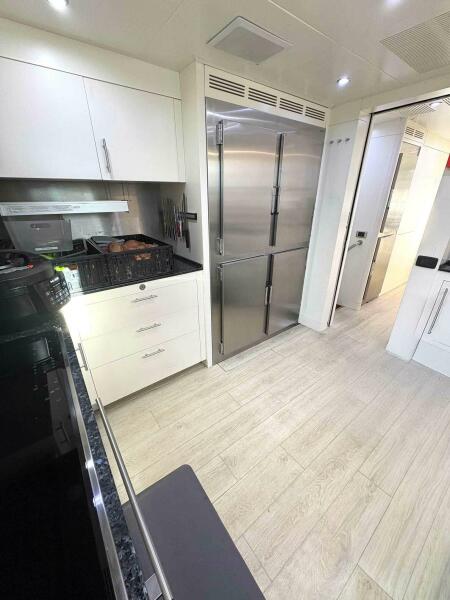

Refrigeration/Freezer: Frigomar stainless steel
Dishwasher: Miele
Disposal: Insinkerator, under the sink
Drinking Fridge: Isotherm Cruise 160
Icemaker: Kismile AL-Z5883F – 36”
Additional Galley Equipment
Sun Deck BBQ: Electric Miele, 4 burners
Sun Deck Refrigeration/Icemaker: Frigomar stainless steel. Replaced in June 2023
Sky Lounge Refrigerators: Isotherm
Sky Lunge Icemaker: Isotherm
Salon Bar Refrigerator: Isotherm
Salon Icemaker: Isotherm
Crew Galley
Refrigerator: Yes
Microwave: Yes
Laundry Equipment
Main Laundry Equipment: (2) Miele Washers + (2) Miele Dryers
TOYS
• (2) Sea Doo Spark Jet Skis - 2023
• (2) Kayaks
• (2) Paddle Boards
• Inflatable dock for Jet Skis
• Floating Bar
• 3 Level Slide
• (2) Sea Bobs
DECK EQUIPMENT
Anchor Windlass System: (2) Onn Italia MOD 106-5.5 kw vertical, electric
Deck Winches: (2) Onn Italia MOD 107-22 kw capstans on aft deck, electric
Tender Davit: Atlas 1,600 lbs. powered skids with electric winches
Anchors: Stainless Steel Manson
Ground Tackle Anchors: (2) x 150 KG stainless steel traditional style with 400’ chain each
Anchor Chain: Galvanized 6.5 shackles
Boat Crane and Davits: None / Atlas 1,600 lbs.
Passerelle: Pin-Craft Gemini stainless steel with teak inlay
Swim Platform & Sun Deck: Teak
Main Deck & Bridge Deck:Teak
SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT
Security Equipment
CCTV System: Panasonic
Cameras: Panasonic
Monitors: (2) video monitors
Fire Fighting Equipment
Fire Control System: Auto Prime
Fire Extinguishers: Yes
Aux. Fire Pump: 208 volts with manifold and remote pickups with hydrants, hoses and nozzles forward and aft + diesel crash pump
Alarms: Auto Prime
Security Monitoring System: Siren 3 PRO (December 2023)
Safety Equipment
Life Rafts: (4) Zodiac 10 man
Life Rings: (4) With floating throw lines attached
(2) With Mob light and smoke
Flares: (2) Orange smoke
Medical Equipment: MSOS
ACCOMMODATIONS
GENERAL
Throughout the boat, including the salon, the finish is in beautiful American cherry wood with decoratively carved roping and detailed moldings. LED lighting from Cantalupi features both sconce and overhead fixtures in gold.
Thanks to a convenient dumbwaiter system running from the pantry to all three decks, lunch or appetizers can be effortlessly sent up to the sun deck.
Main Deck Salon:
The salon provides a pleasant seating arrangement in cream silk damask and it is complemented by crystal lamps.
The large dining area, with ceiling-to-floor windows that allow in the daylight, features a large, burled table that comfortably seats 10. A five-doored credenza, crafted from glass and cherry, completes the space and provides ample storage for china and silver service.
A built-in bar, offset by bookshelves, is located aft near the large curved automatic door.
Bridge Deck:
The flybridge deck is finished in blue leather and cherry, and supplied with modern navigation and communication equipment for worldwide cruising. The Captain''s cabin, located here, has a marble shower ensuite.
Sky Lounge:
Overstuffed couches, small tables, and chairs complement the large windows that offer a bird’s eye view, the sky lounge is outfitted with a large SMART TV and Crestron A/V. A large curved automatic sliding door that leads to an outdoor deck, and forward of the sky lounge is a day head with a marble shower.
There is an alfresco dining table that seats twelve, and opposite it is a cozy nook perfect for breakfast, dining or cocktails.
Towards the aft, a vast day bed awaits with sunshades, providing the perfect setting for sunbathing, relaxation, or enjoying a movie on the outdoor TV.
Sun Deck:
The spacious sun deck, which was extended aft by 1.5 meters during construction, offers an outdoor space that rivals that of a 50-meter yacht! At the forefront lies a comfortable seating area, followed by a generously sized round Jacuzzi with soothing jets and lights for ultimate relaxation. With just the push of a button, you can retract the sunroof above to gaze at the stars during the night.
To the aft on both port and starboard sides, you''ll discover a wet bar with ample seating, while opposite stands a Miele BBQ grill, perfect for outdoor culinary delights.
The Jacuzzi fits up to 6 people.
Further towards the rear of this expansive sun deck, sail sunshades provide shelter, ensuring comfort even under the sun''s rays.
OWNER
Main Deck Master Stateroom:
The main deck master stateroom has a kind-sized bed, a 180-degree view, powered curtains, ensuite baths, his with rain shower, hers with tub, separate vanity area, walk-in closet, and ample storage throughout the cabin. It also has a private in-cabin office.
GUESTS
The four guest staterooms, located on the lower deck, surround a foyer with extra storage. All guest cabins are well equipped with audio/visual entertainment systems.
VIP Staterooms:
There are two VIP queen staterooms, located port and starboard, each featuring large windows. The marble ensuite baths include showers with windows. There are also vanities, heads and bidets.
Twin Staterooms:
Two twin guest staterooms, located at port and starboard, are quieted with large windows. The marble ensuite baths include showers with windows, there are also vanities, heads and bidets.
CREW
The captain’s cabin is located on the bridge deck with an ensuite head and shower.
3 cabins with 2 bunk beds per cabin, and two heads are located on the lower deck.
2023 UPGRADES
The 5-year class survey was completed in November 2023
Both main engines received a 5000-hour service, including injector replacements, turbo repairs, high-pressure fuel pump repairs, and fuel injection pump servicing, totaling $56,968 on July 2023
Both Northern Lights Generators had Top-end overhauls by Mendol Marine, costing $78,519.00 on May 2023
New Security Monitoring System Siren 3 PRO installed at a cost of $6,420 on December 2023
2 new galley ovens totaling $9,200 were installed in October 2023
1 new 5-burner induction stove at a cost of $3,250 was installed in October 2023
The annual fire system certification was obtained in October 2023
Freshwater tank blasted and recoated at a cost of $27,190 in October 2023
Wastewater treatment upgraded for $44,780 in October 2023
The windlass and capstans were removed and rebuilt for $50,859 in October 2023
Running gear and stabilizers serviced by Highseas, including the dropping and servicing, for $61,183 in October 2023
New cutlass bearings were installed in October 2023
New exterior cushions were added in October 2023
New carpet runners were installed in October 2023, costing $32,370
The bottom was painted in October 2023
New galley equipment was installed in October 2023
A custom bow sunbathing area was installed in October 2023, at a cost of $18,200
New radars, emergency and bilge alarms were installed at a cost of $74,966 in October 2023
Battery capacity and motor isolation tests were performed as well as a sea service and electrical system repair for $14,970
The life raft was recertified in October 2023
All 35 underwater skin valves were removed, and pressure tested by Engineered Yacht Solutions in September 2023
