- YW#: 4054686
- Year: 2009
- Located in: West Palm Beach, FL, United States
5 Staterooms/ 7 Heads - Sleeps up to 11 Guests plus up to 8 Crew in 4 Cabins
Built under the supervision of the Rina Classification Society in 2009
Sullivan's Island has been meticulously maintained to the highest of standards by the Owner and experienced crew.
Refit in 2023 w/ recent upgrades including:
- NEW LED Lighting (Exterior & Interior)
- Convertible Twin Berths
- NEW Teak on Swim Platform
- NEW Helm Electronics
and many more...

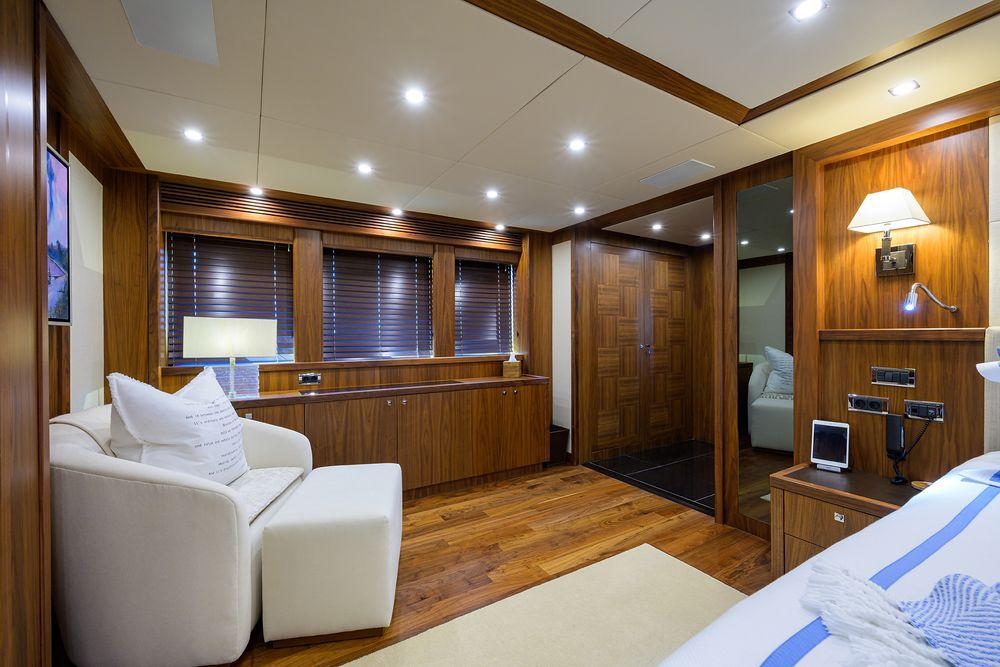

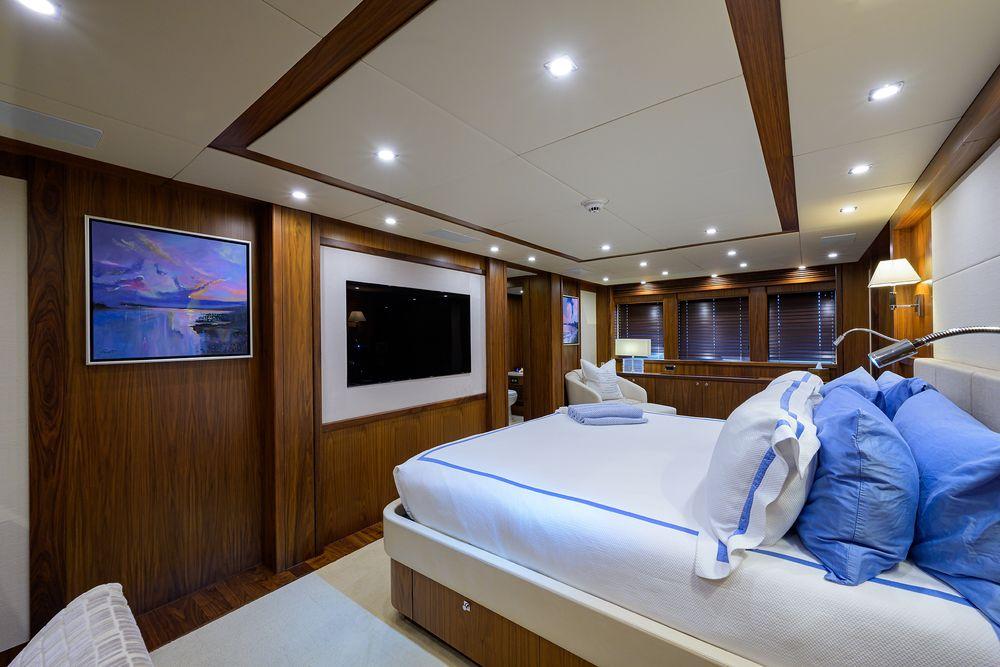

Owner's Suite

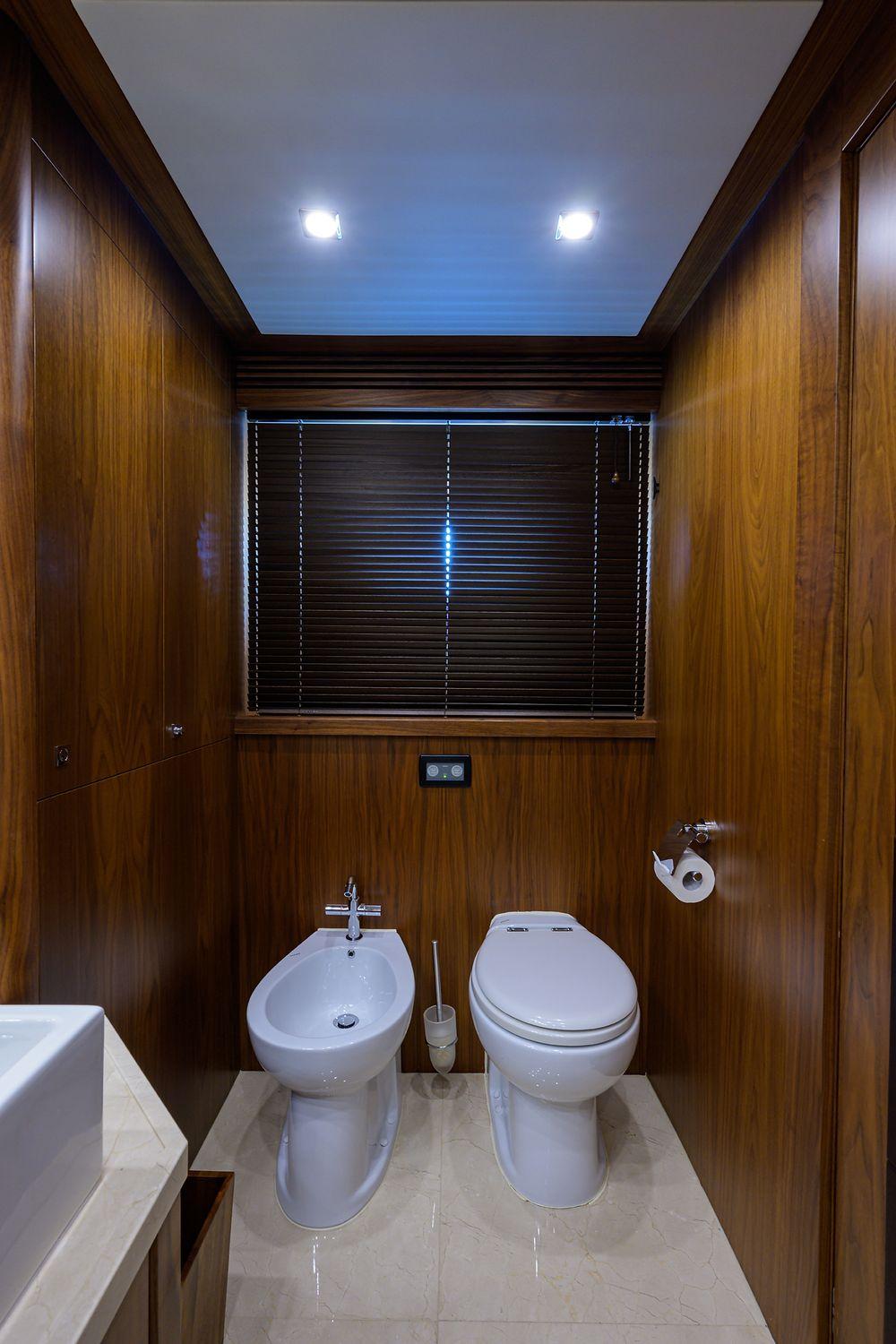

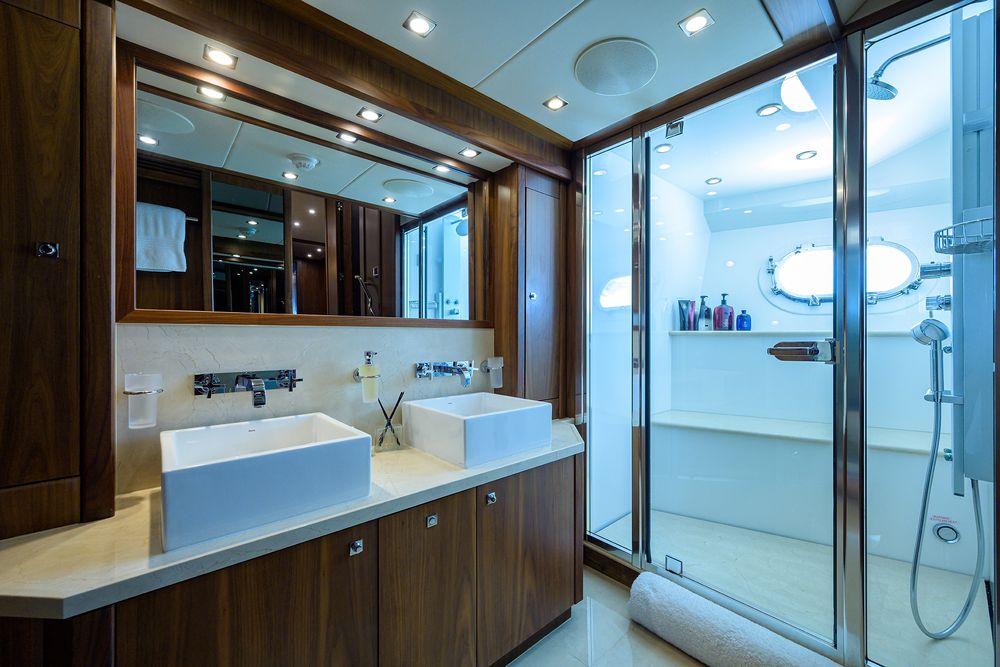

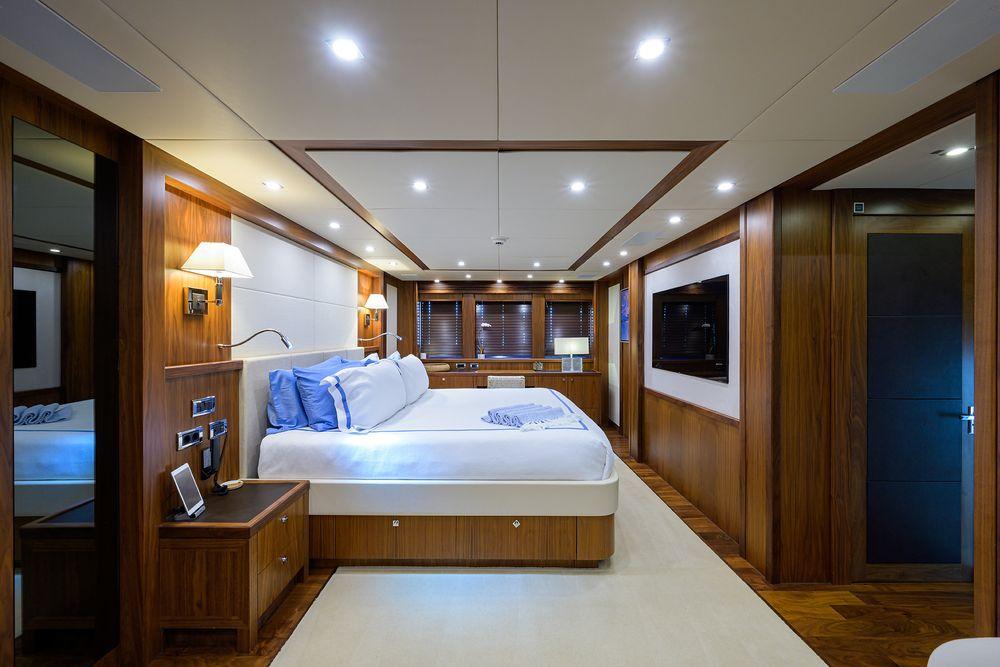

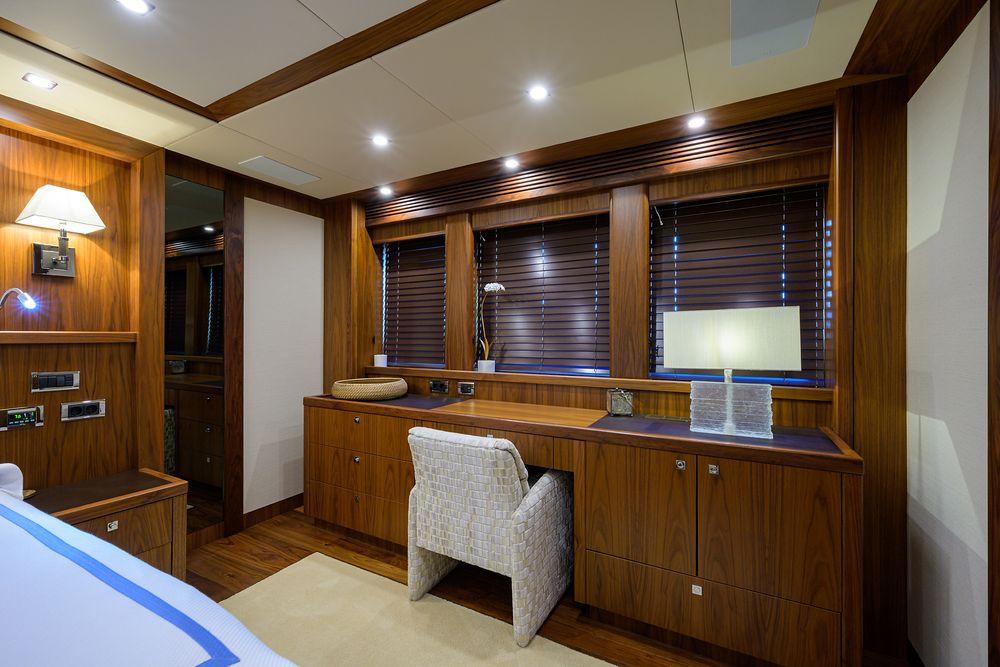

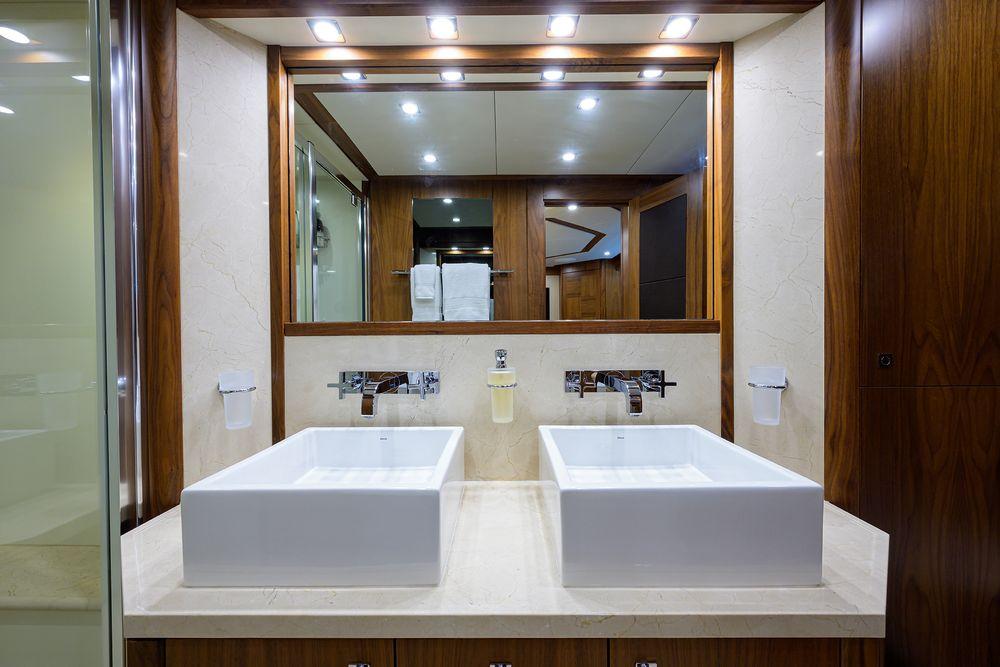

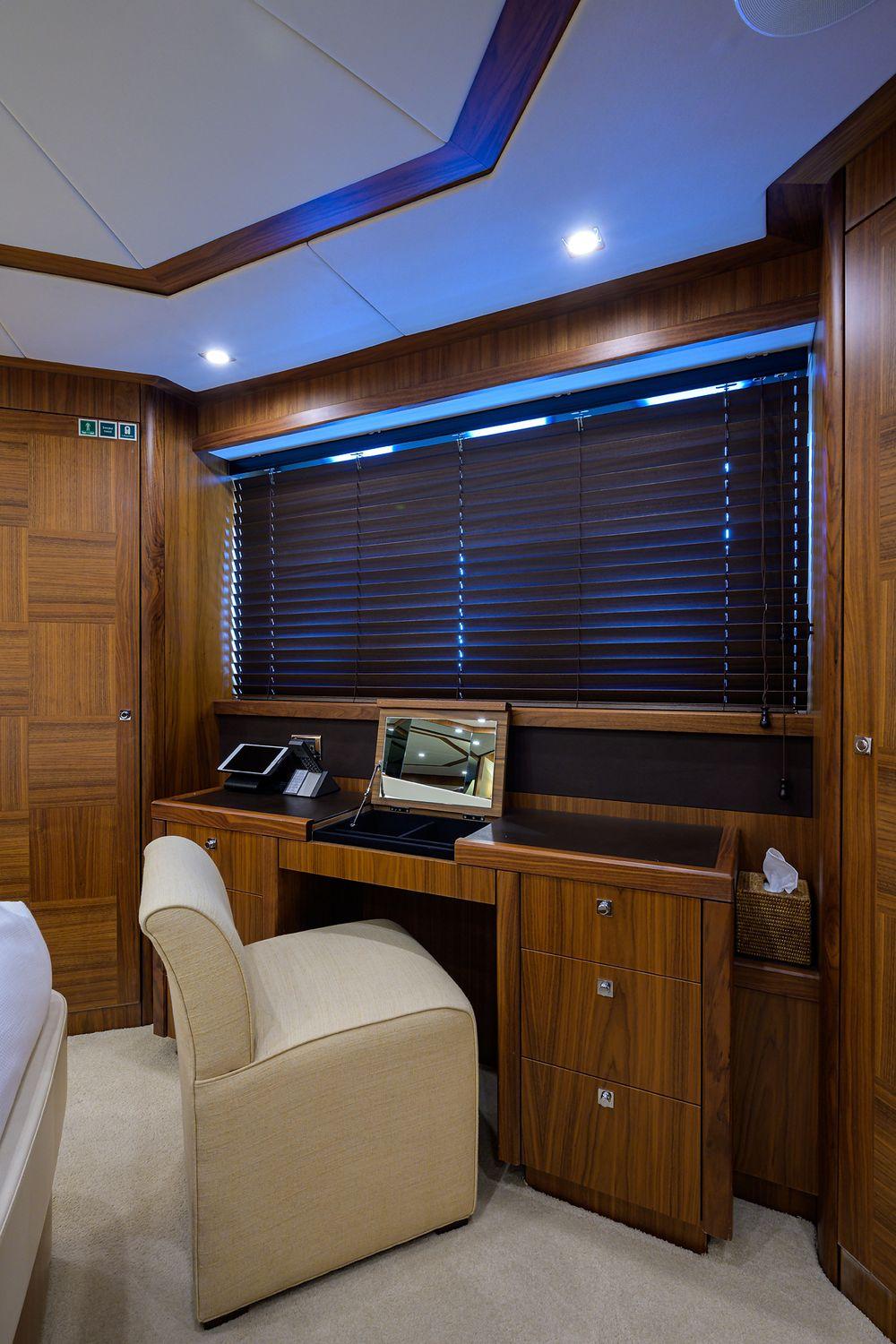

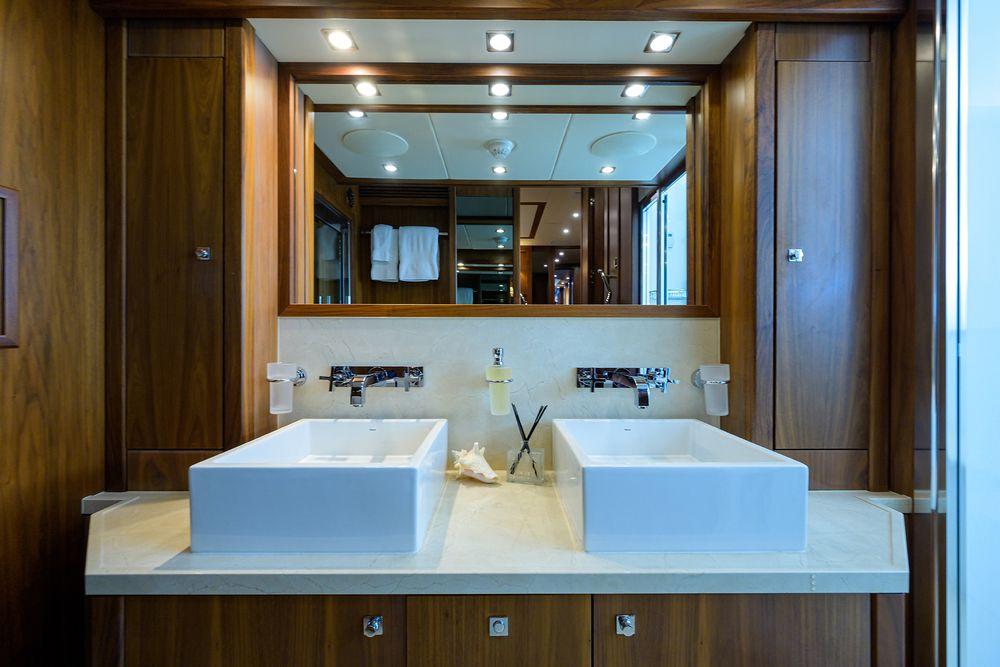

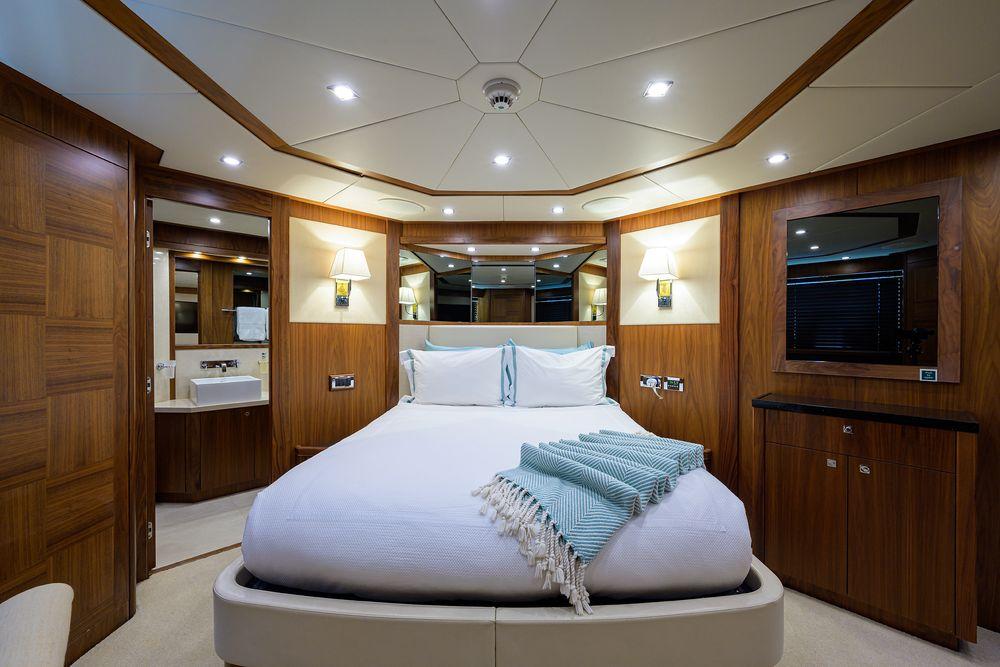

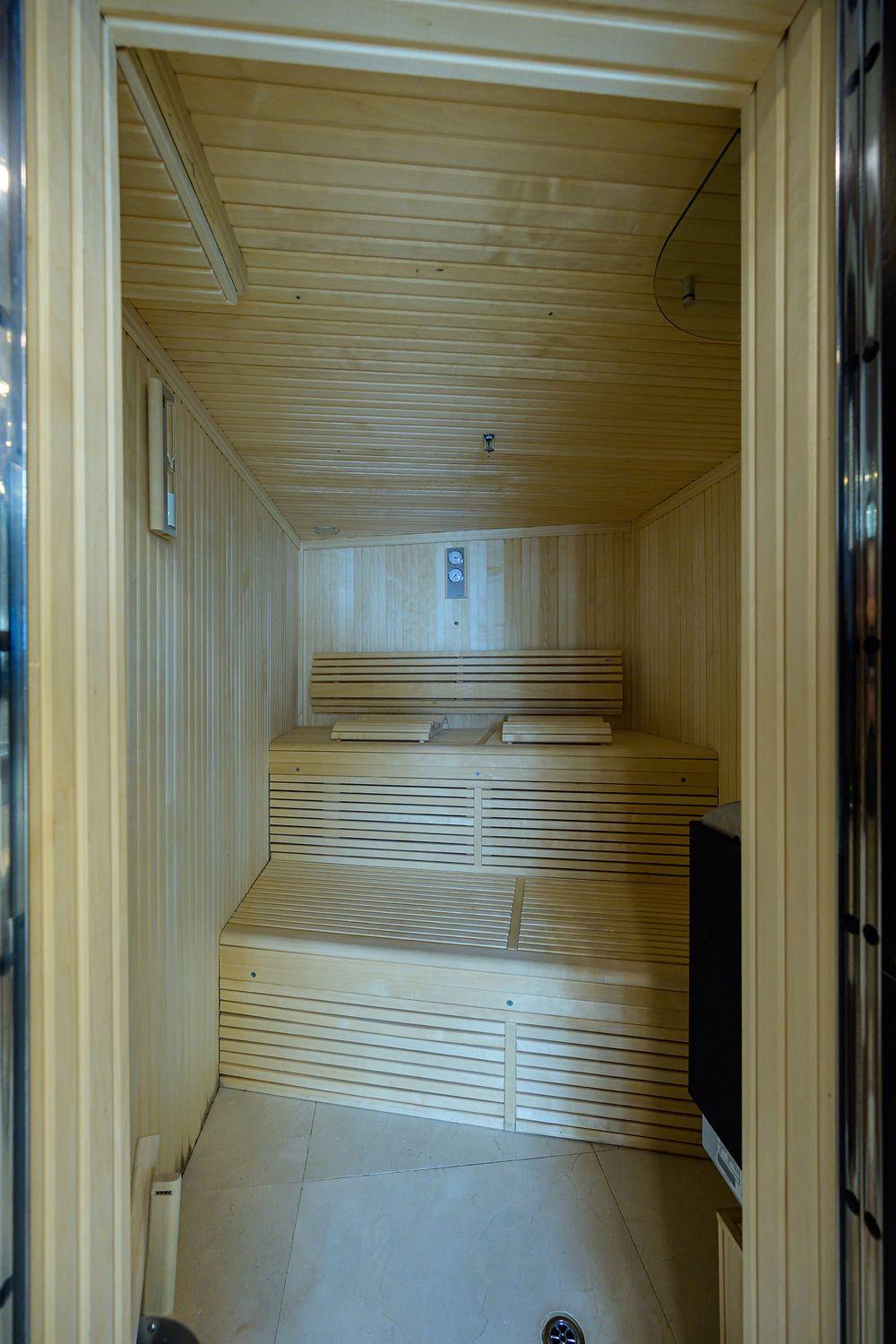

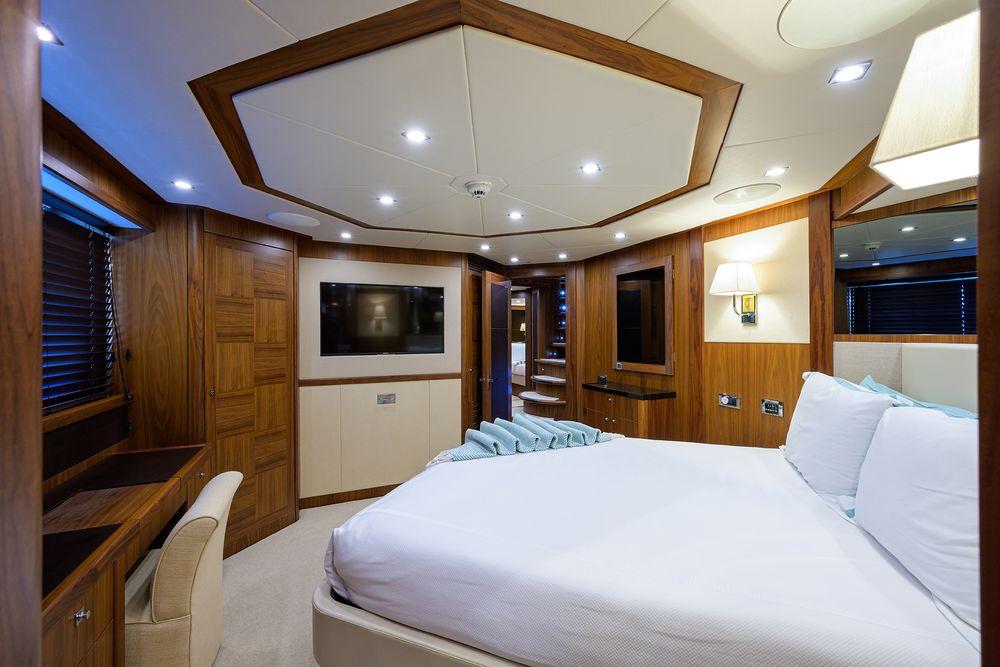

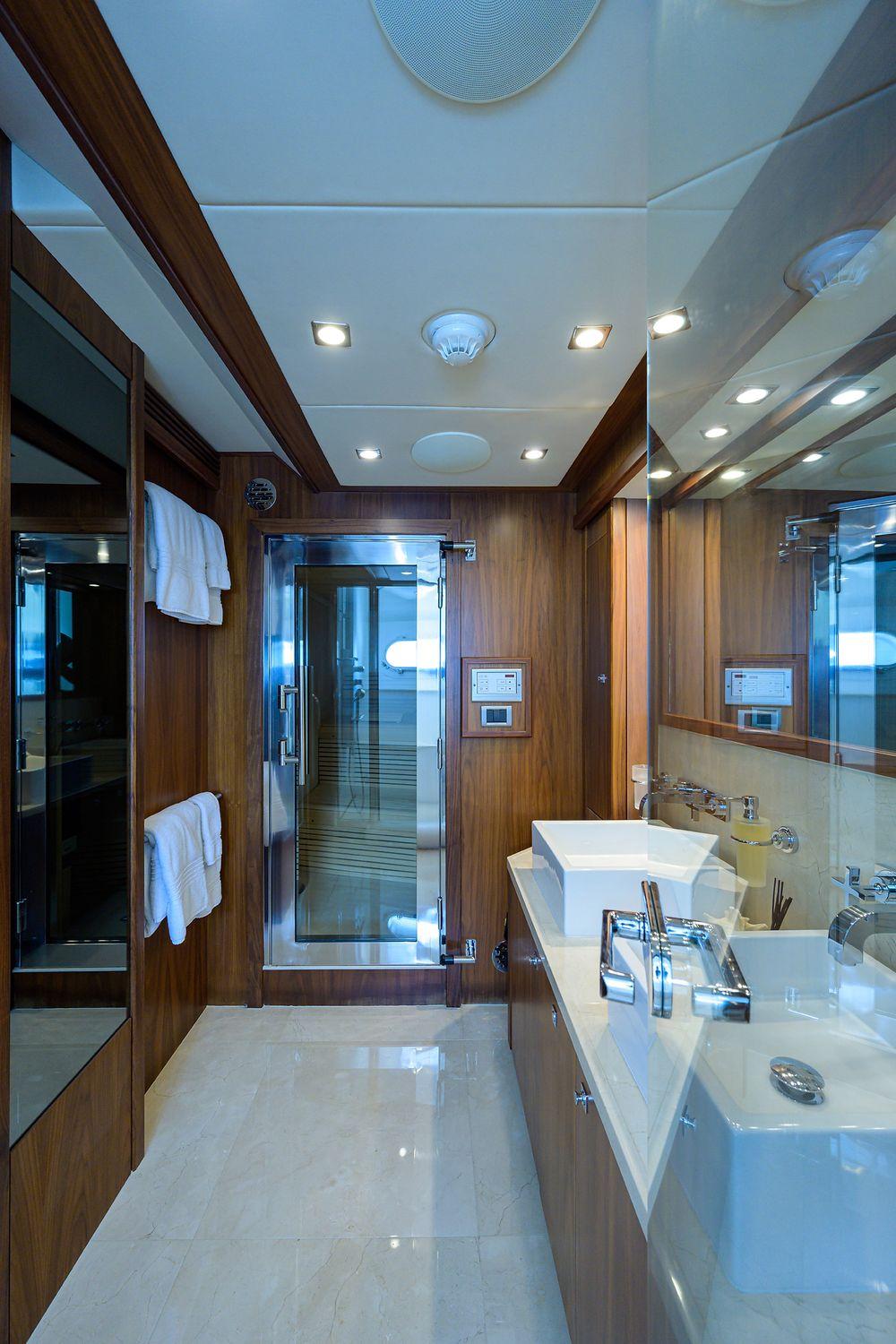

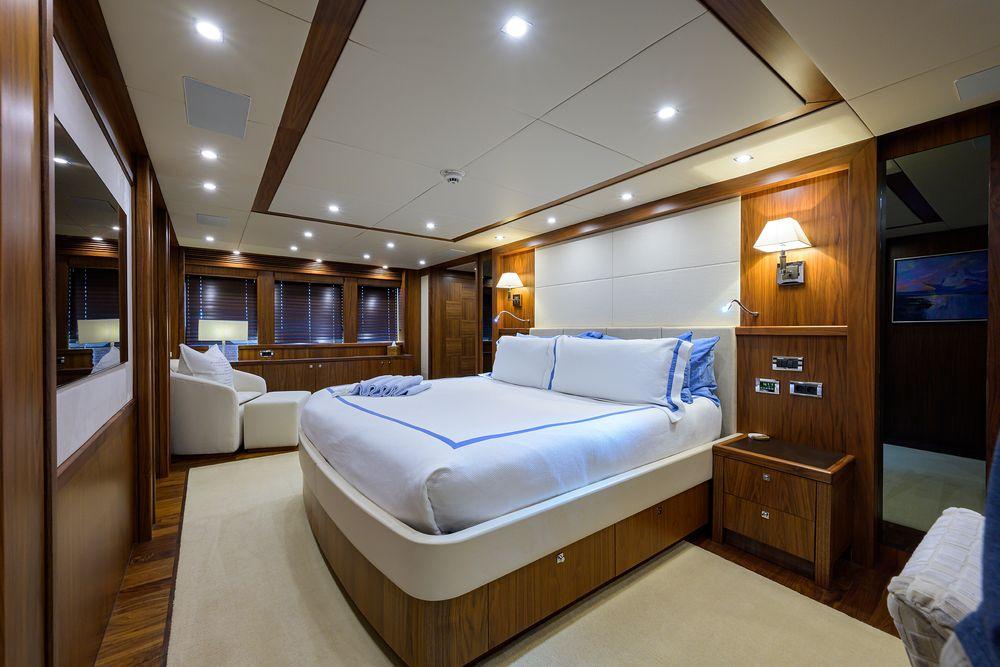

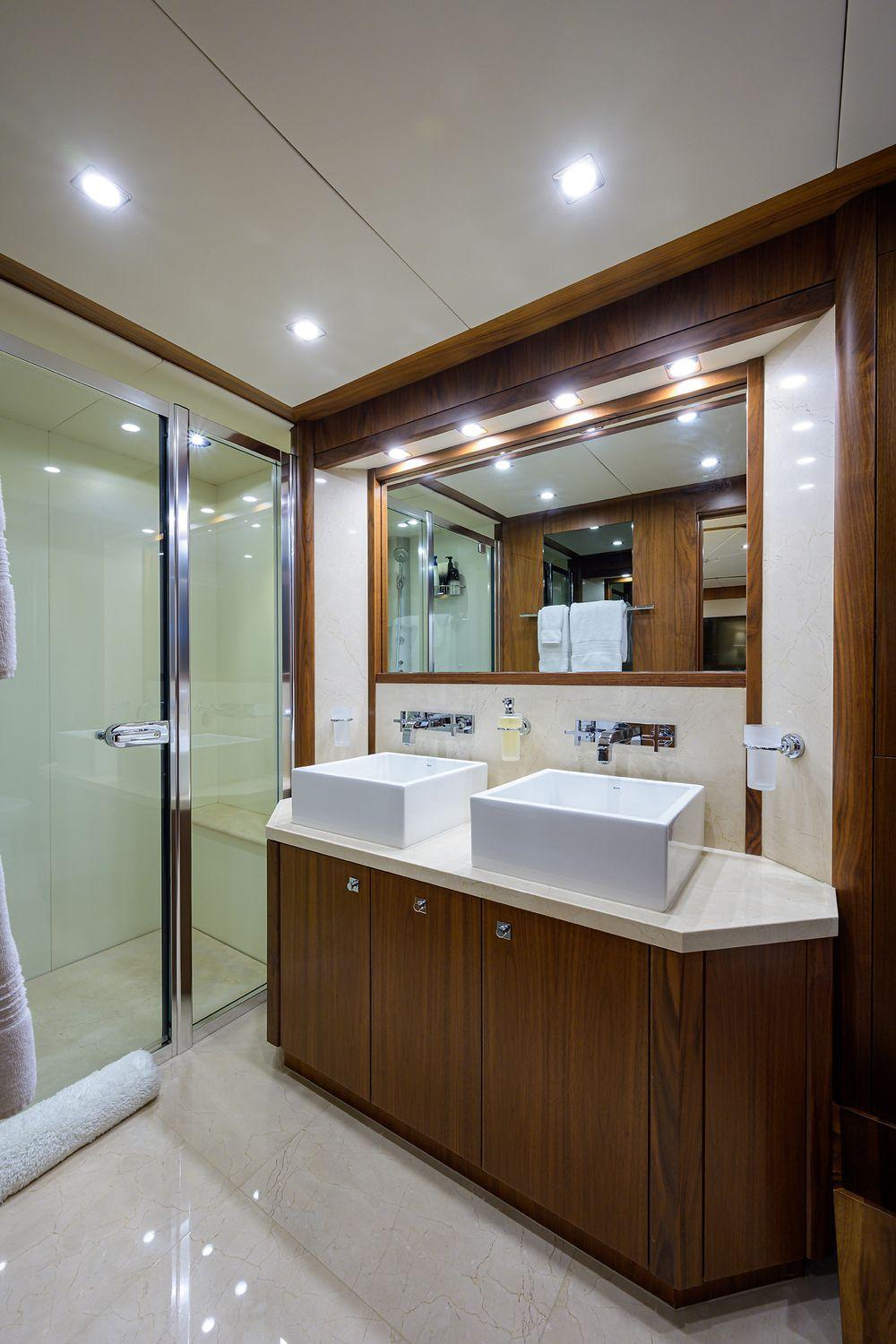

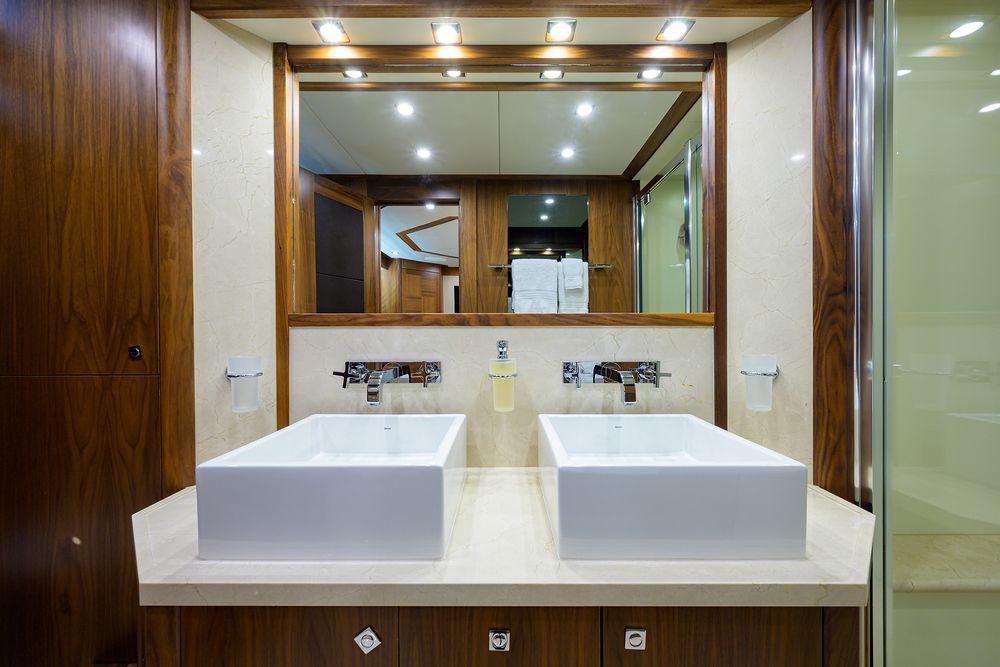

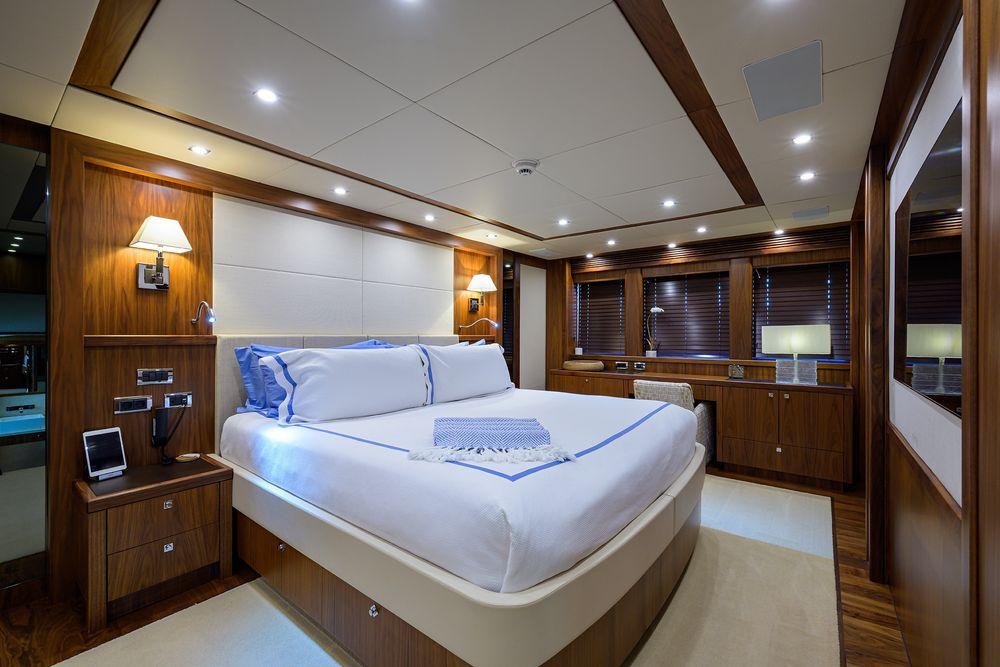

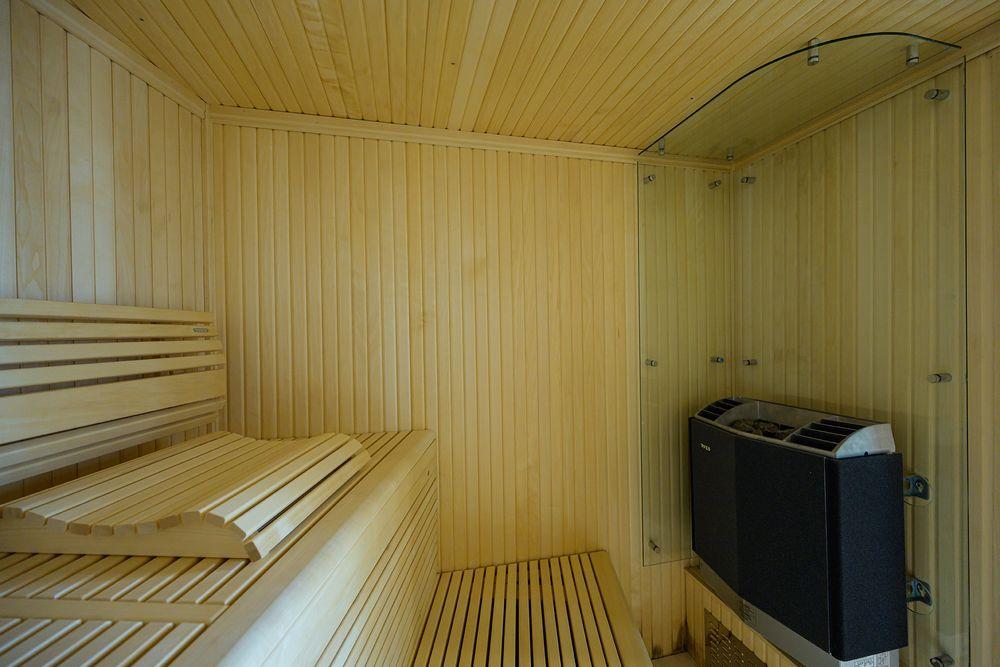

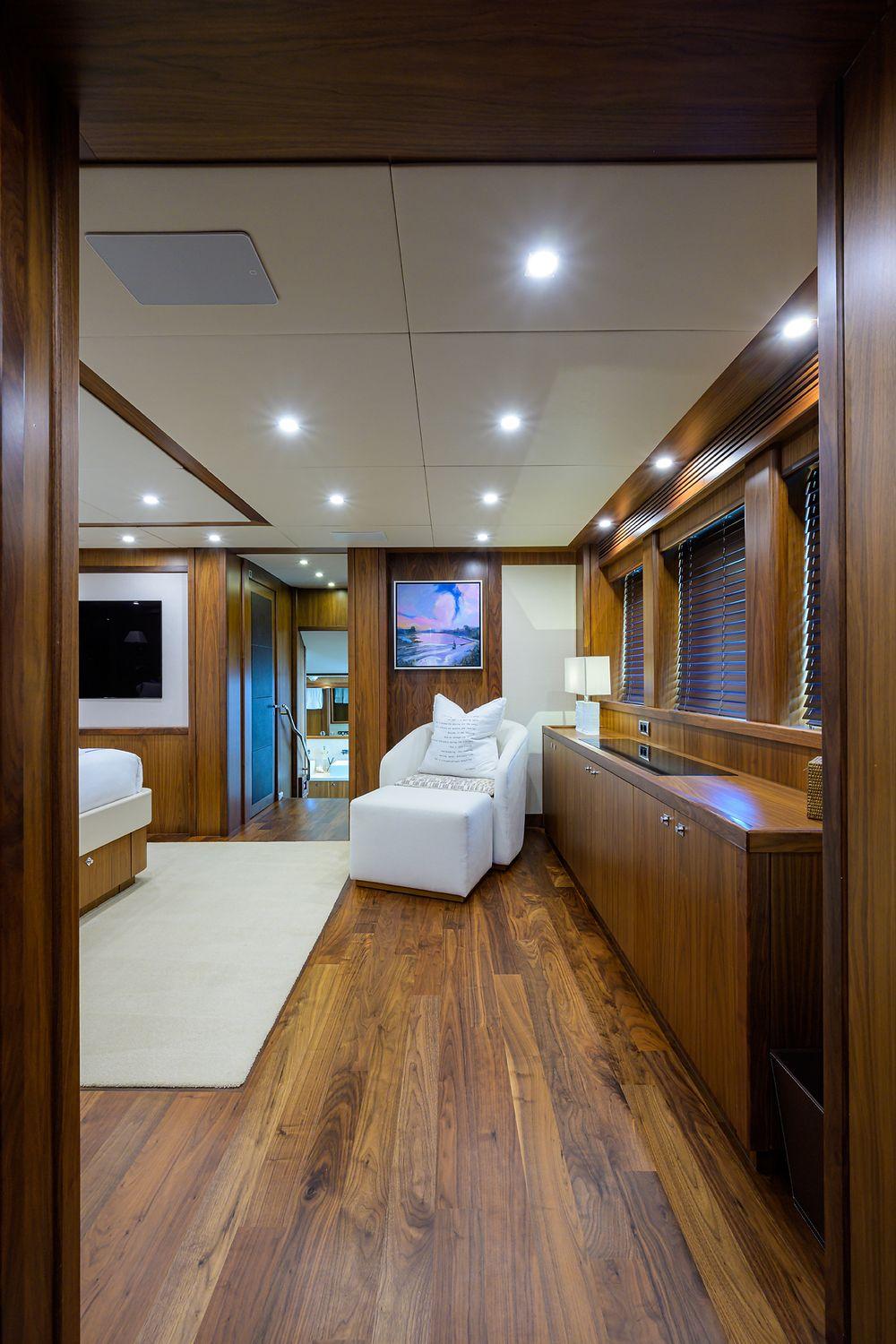

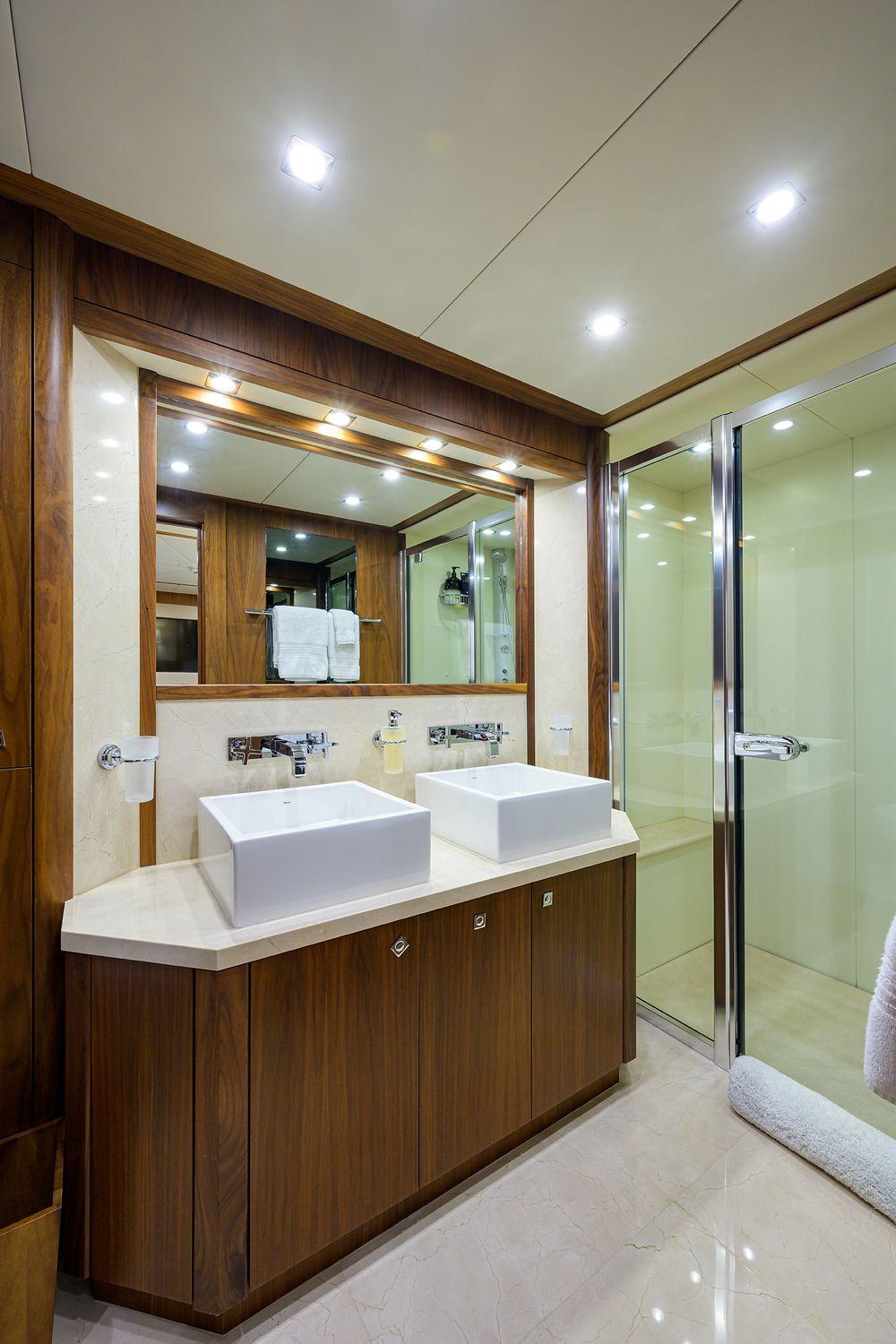

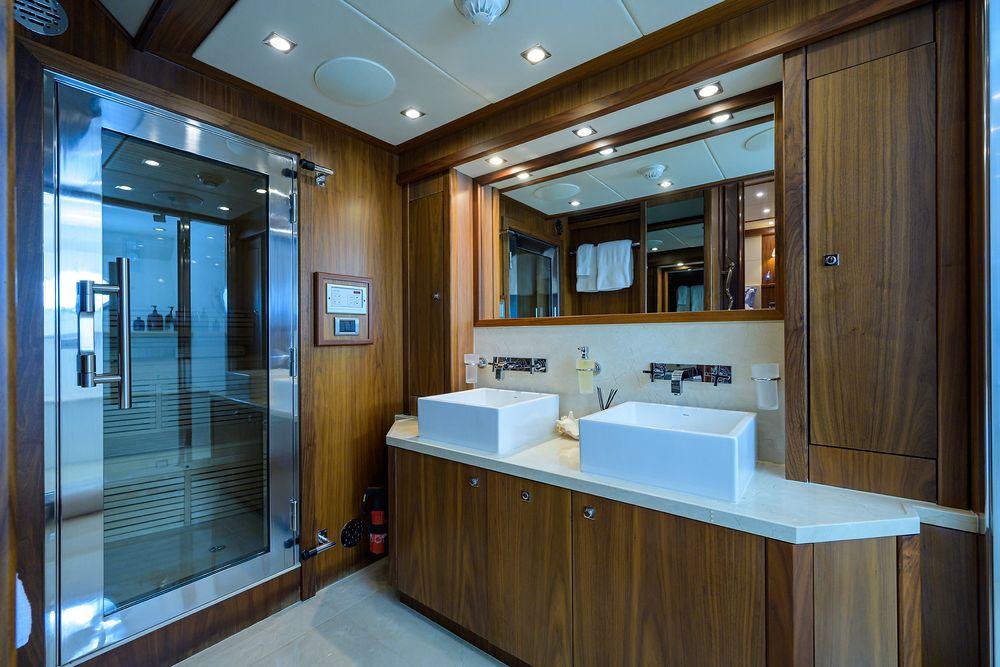

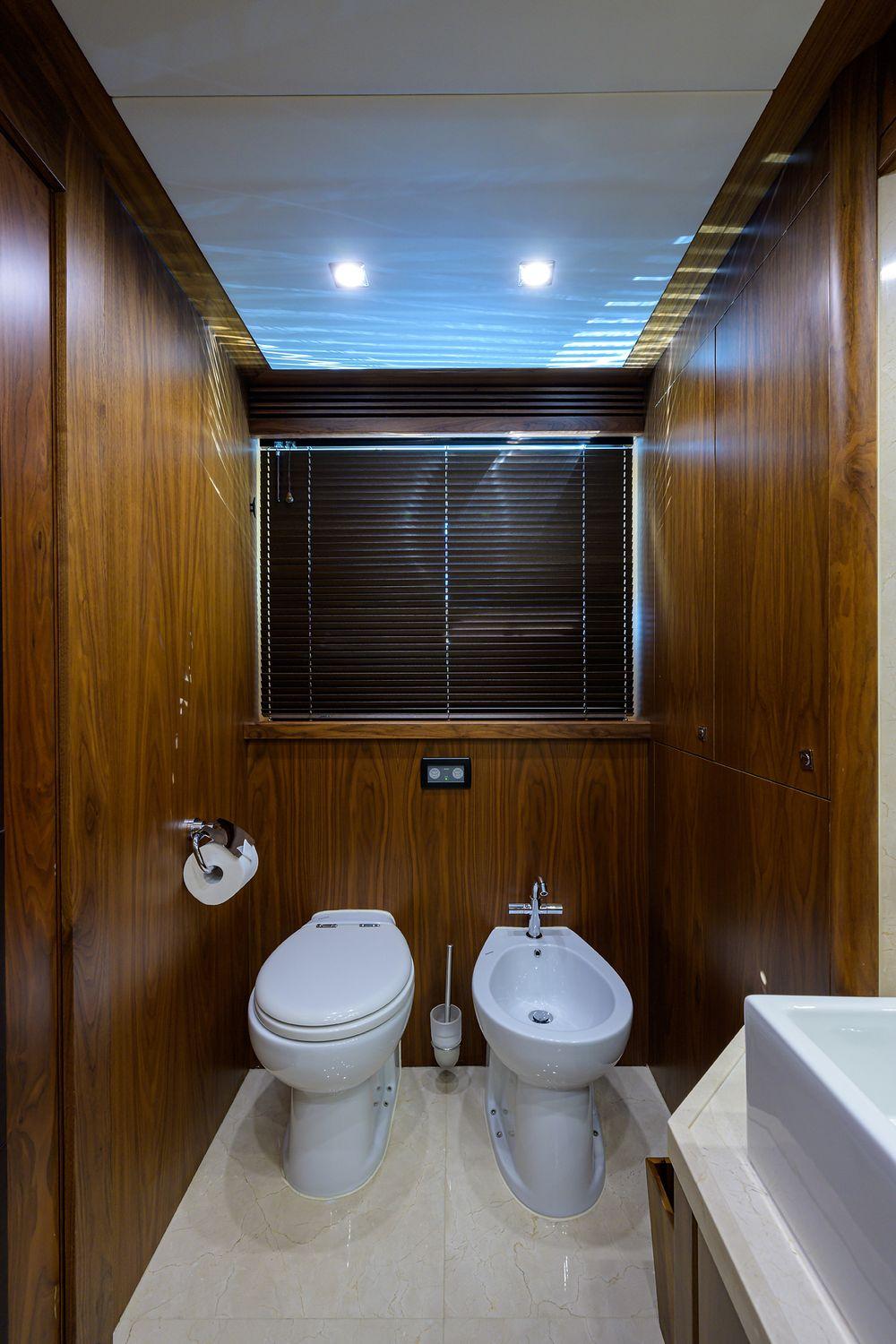

Entering the Owner's suite forward of the main deck the doorway is positioned starboard side which leads into a full beam Owner’s cabin with king size bed, both port and starboard windows have wooden blinds to shelter from the light and for privacy. The interior is calming in décor with ample space. Going forward port side is the walk-in closet with a WC to the starboard side. The bathroom is accessed down 2 steps which are central to the cabin with a large steam shower to starboard and sauna to port. Twin washbasins sit centrally with ample cupboard space below. The Owner's cabin feels as large as many of the larger yachts, this is a comment often made by those who view.

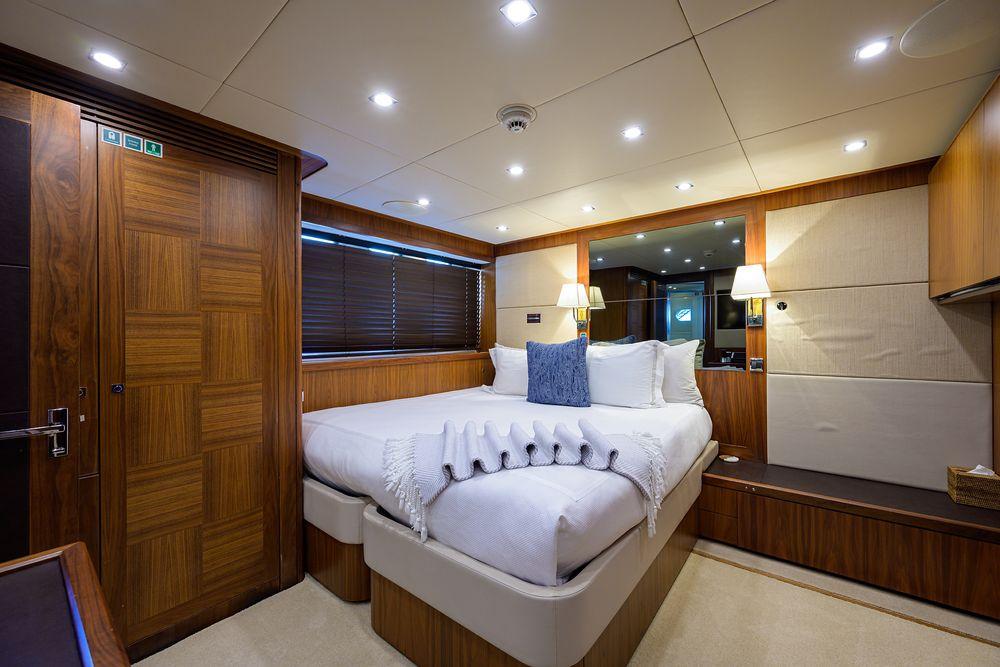

Guest Accommodation

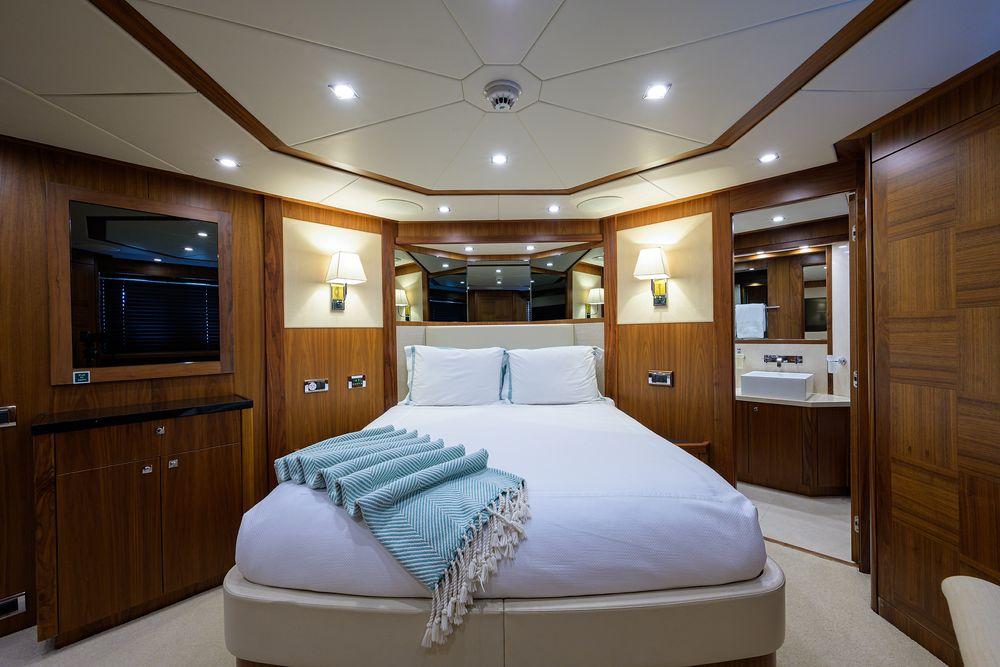

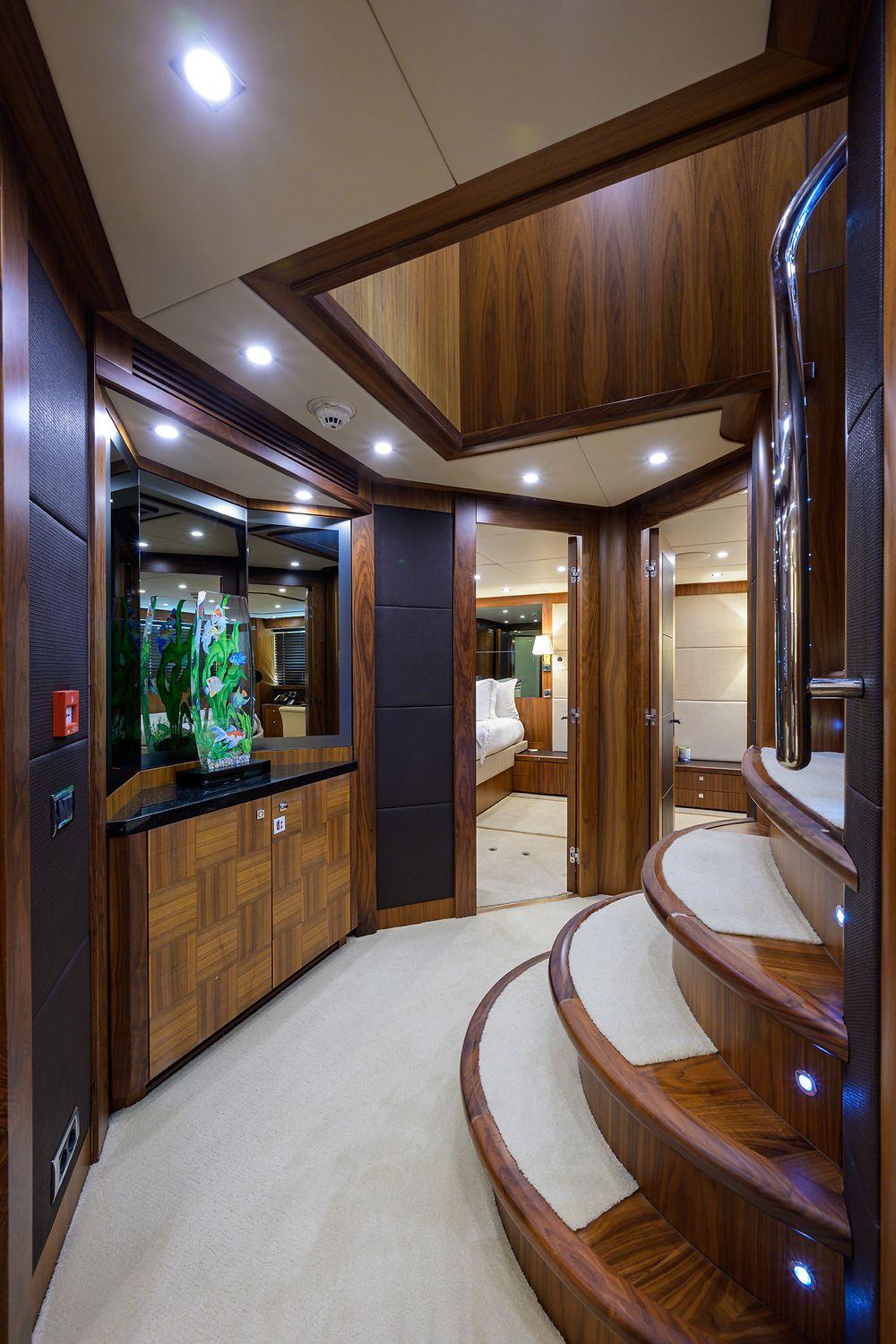

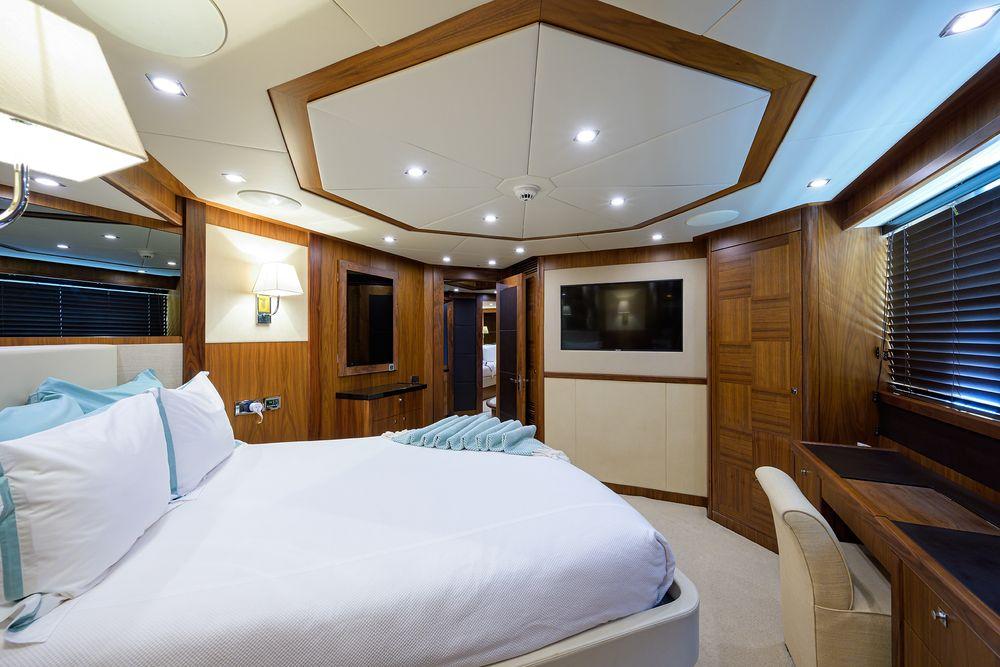

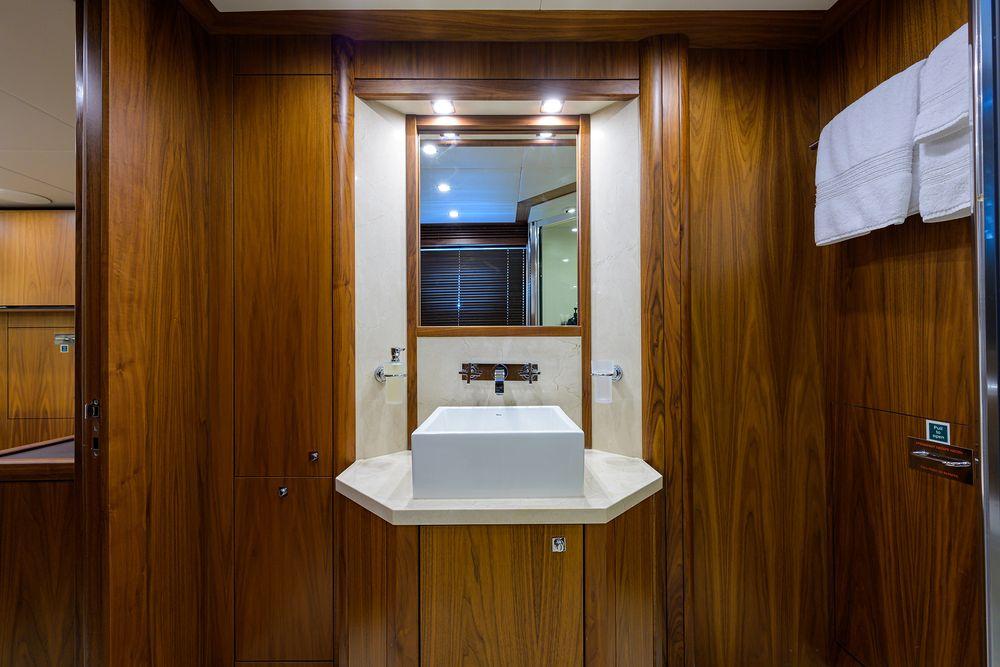

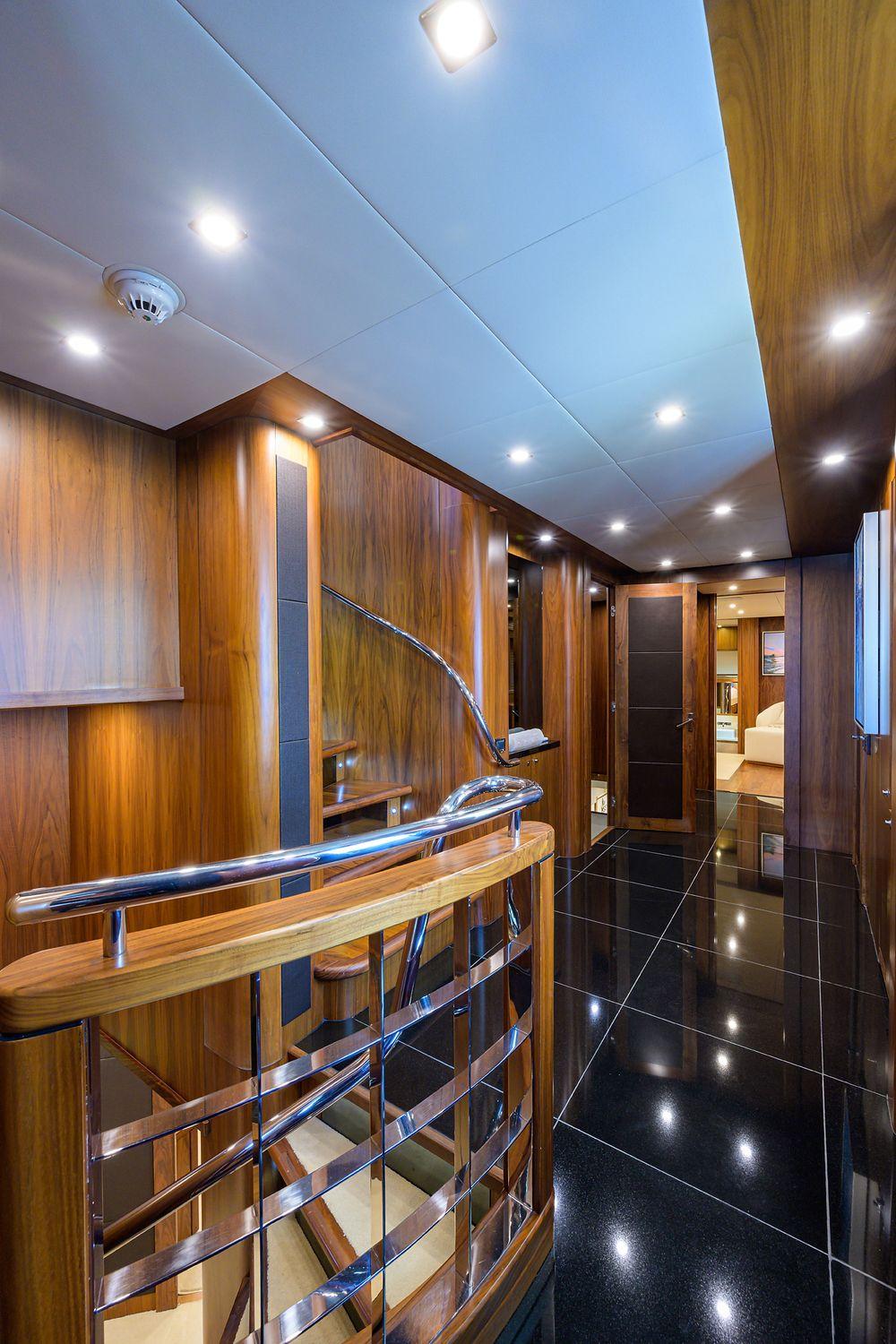

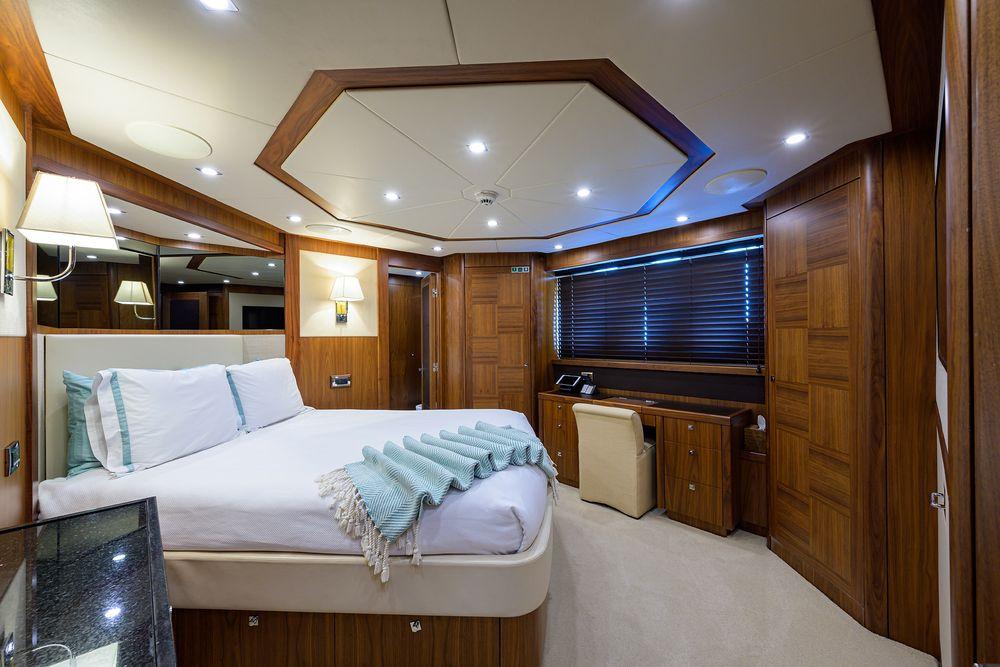

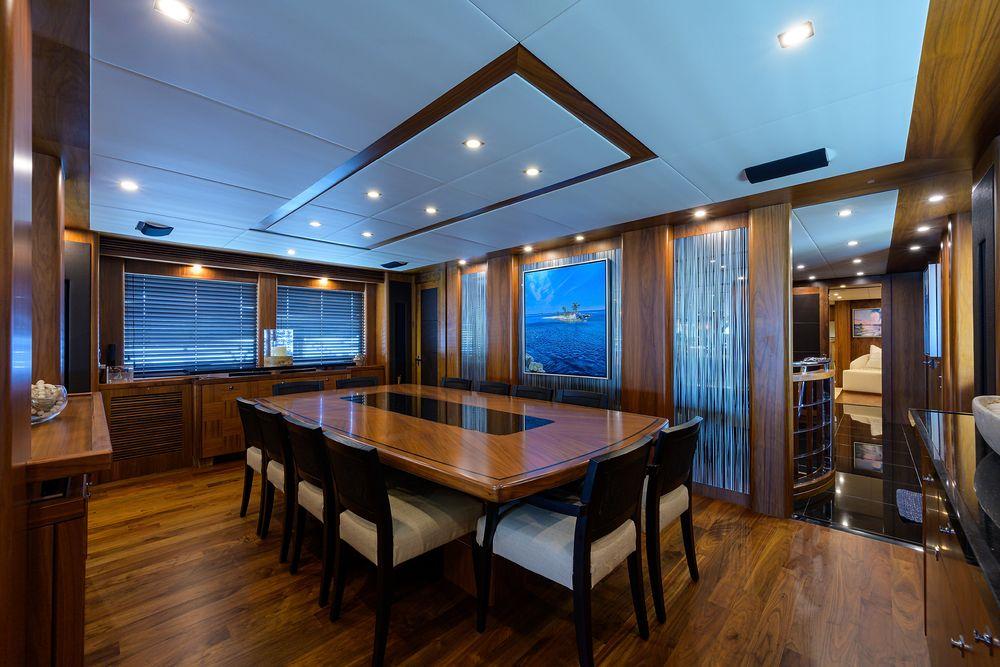

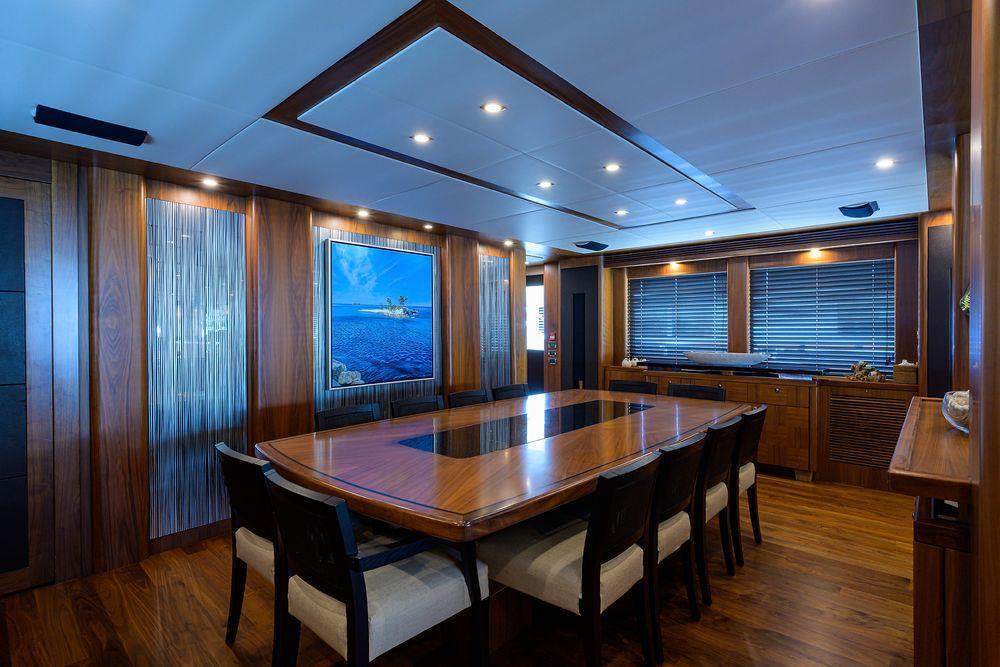

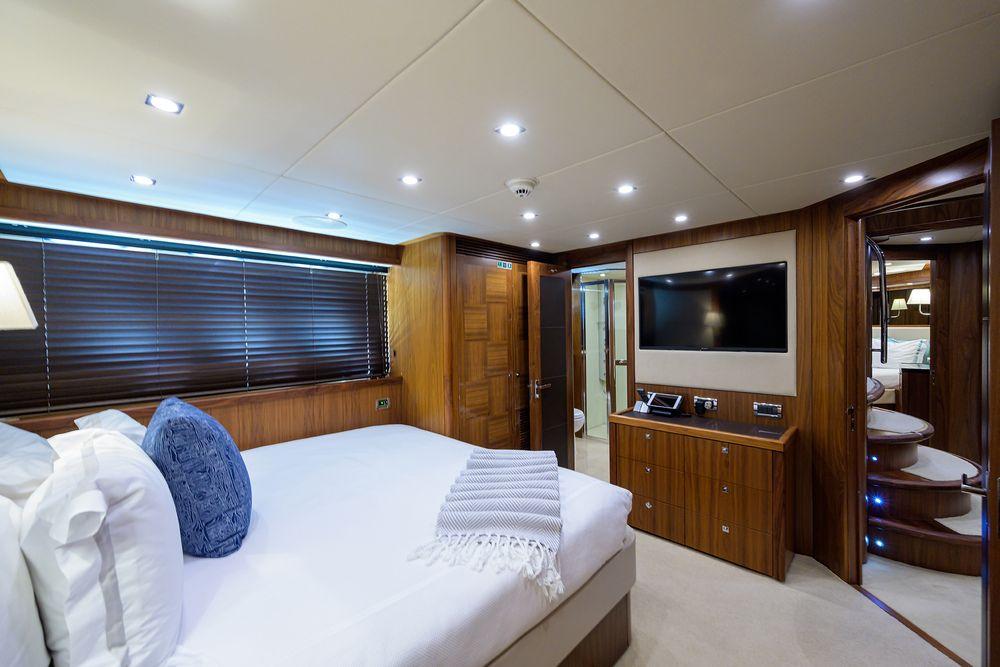

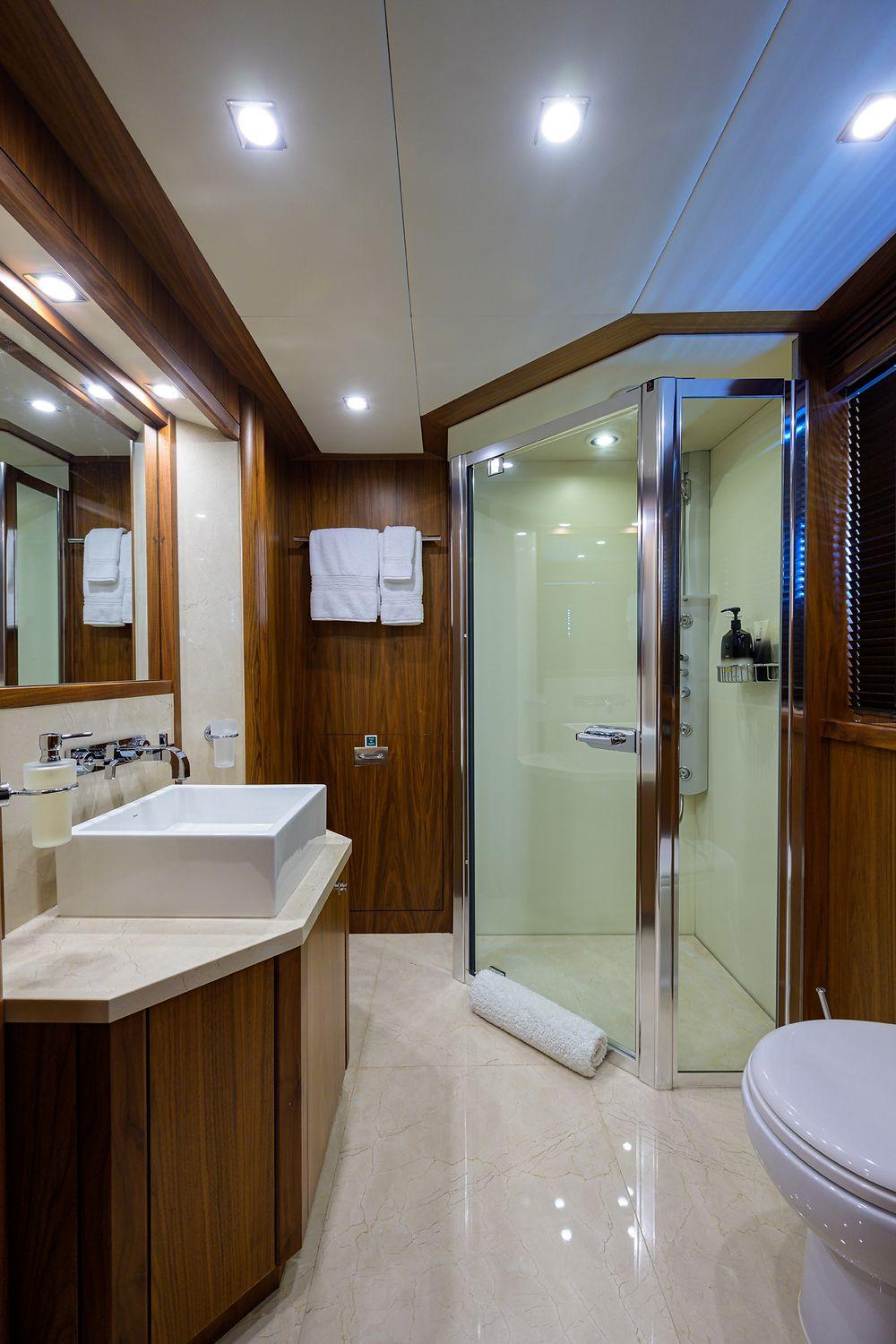

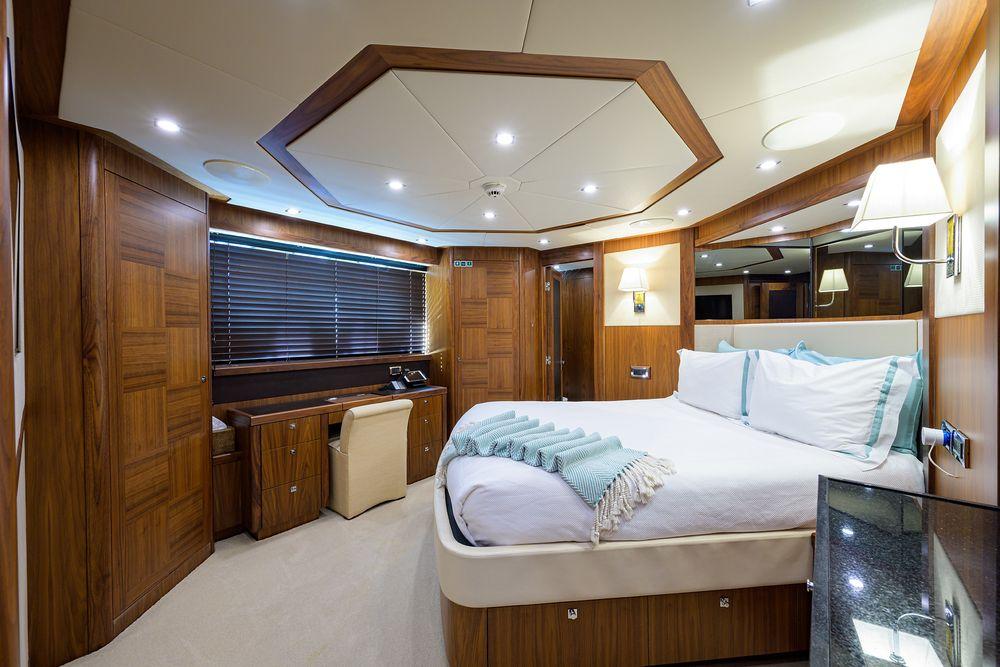

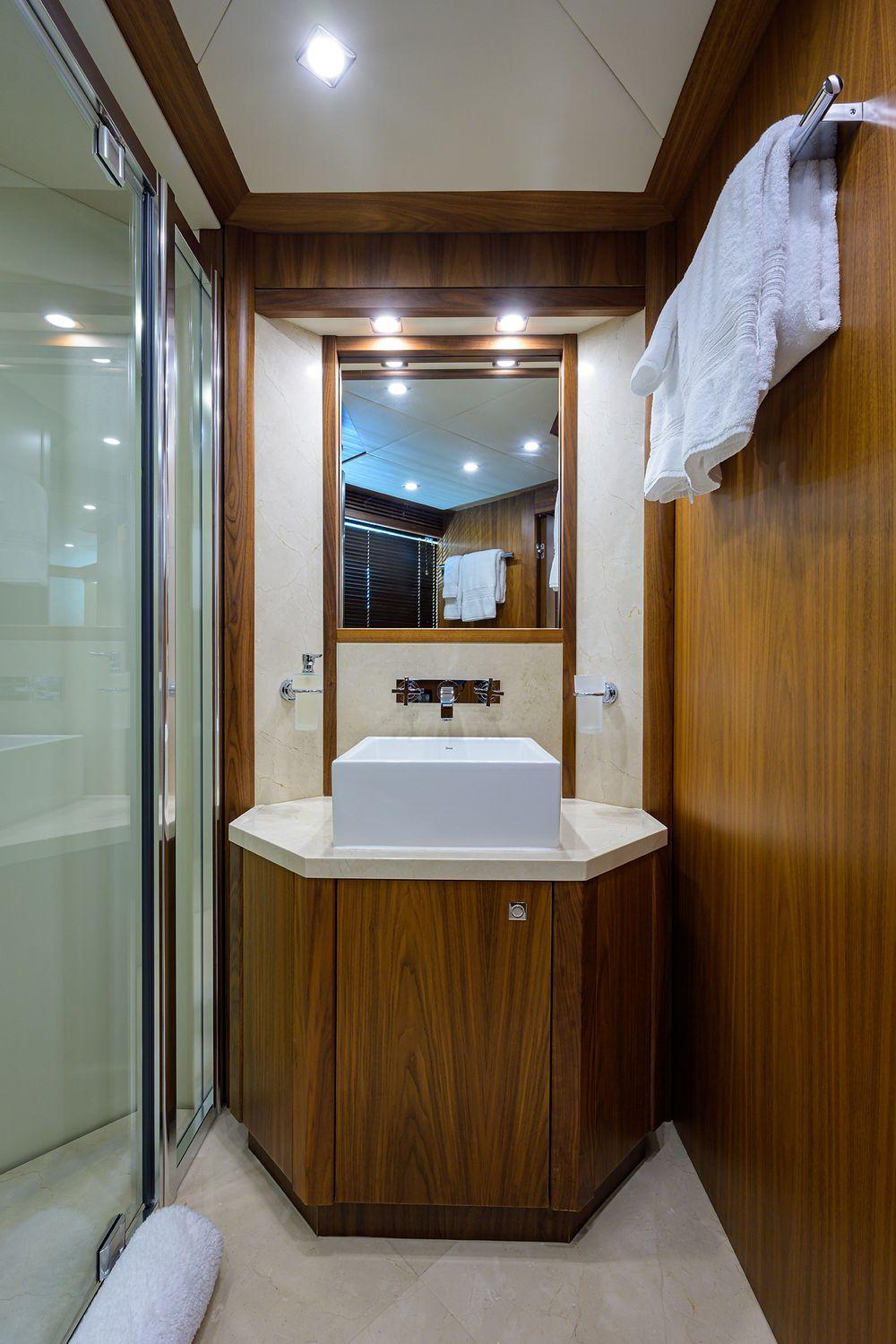

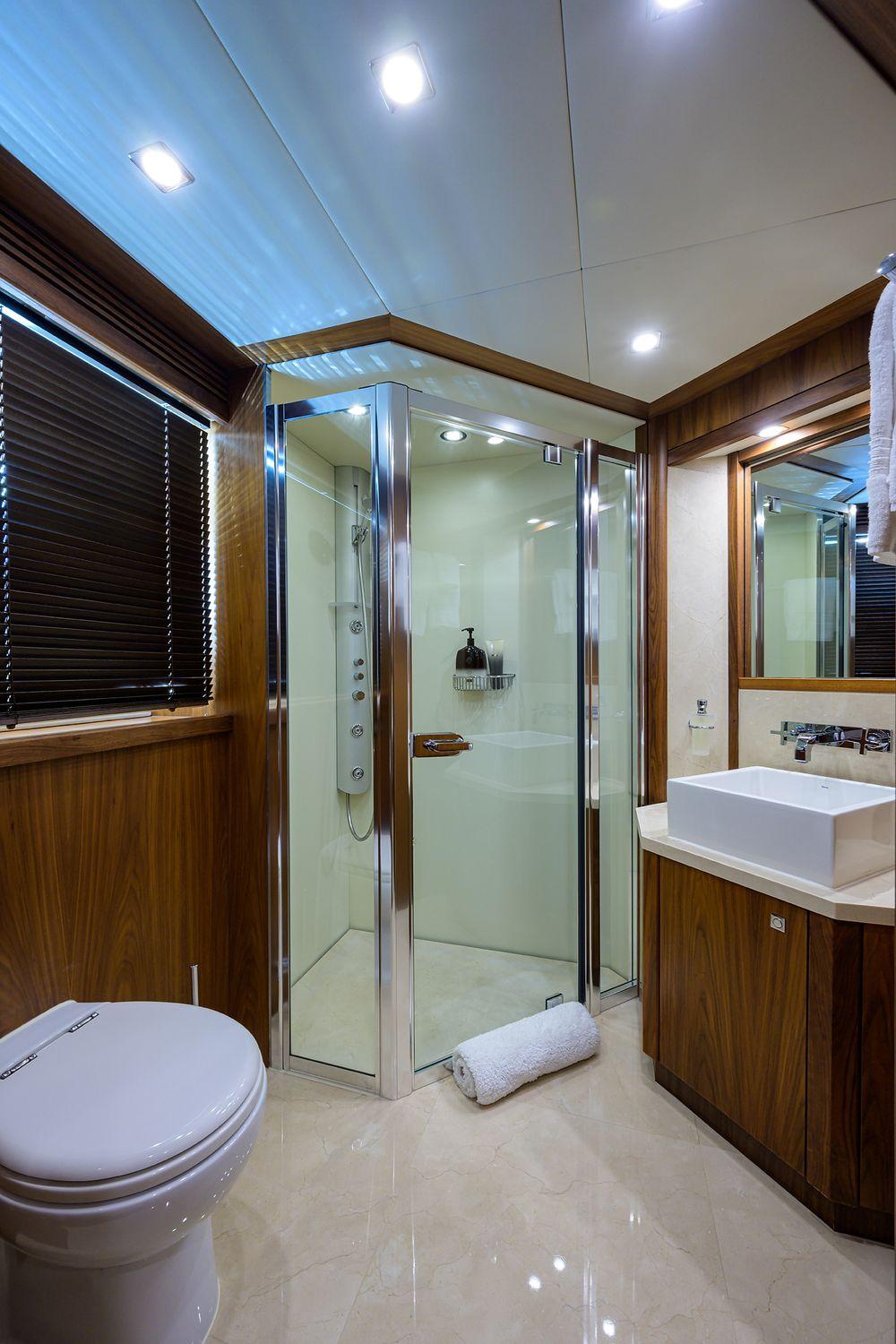

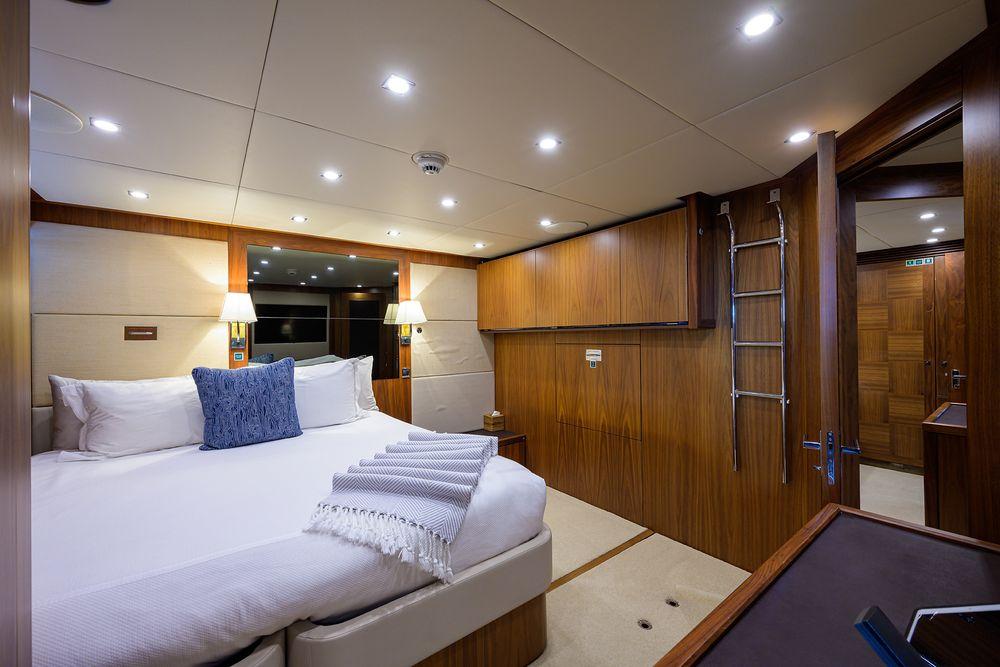

Accessed down a staircase forward of the main salon and main dining area. There are four equally sized guest cabins offering large windows to give plenty of light and a good-sized bathroom with a large shower. There are two double cabins and two twins both with sliders that can be made into double beds if needed, the fourth cabin has a Pullman berth.
Crew Quarters
For up to 8 crew in four cabins. Three cabins with 2 single beds and 1 captain cabin on the bridge with a double sized bed and Pullman berth.
Mechanical
- Twin MTU 12V4000 M90 diesel engines, 2,735HP
- Engine Hours: 5,136 (Feb 2023)
- Propulsion: Prop Shaft
- Gearboxes: 2 x ZF 4650 A gearboxes with a ratio of 3,04:1
- Steering: 2 x HD 250 HY-Drive Steering; Electro/ hydraulic steering system with full redundancy
- Stabilizers: Digital Fin Stabilizer system with TRAC-STAR at anchor stabilization
- Generators: 2 x Kohler 70kW EF 02D 50 HZ
- Generator Hours: Port 12,408; Starboard 12,622 (Feb 2023)
Electrical Equipment
- Electricity: 2 x 400V 50HZ 70kW 127A
- Shore power: 400 V 50 HZ 70
- Batteries: Radio batteries 24v 65 ah
- Two sets of start batteries: 24v 100ah Service batteries: 24v 800 ah
- Emergency batteries: 24v 400 ah
- Air Conditioning: Marine Air chilled water system throughout the yacht with fan-coils and thermostats in all cabins - 4 units Model No.
- MCW 360 (024) 400V B.T.U 360.000 3PH
Ancillary Machinery
- Thruster: (2) American thrusters (one fwd and one aft) integrated hydraulics
- Bilge System: Rise system sealing, Bureau veritas certifcate-10035/boec, bilge pump AC (BBA type B60 - 180 BVGMC) & emergency bilge pump c (engine drive)
- Fuel Separator: Alfa Laval high speed separator MIB 303S-13/33 with transfer pump AC
- Water Maker: Idromar MC55 up to 250 ltrs p/h capacity
- Toilet System: Tecma freshwater centralized system
- Sewage Treatment: HAMANN AG HL~CONT(1qm/3h) 7958 ISO9001:2000
- Boiler System: (2) Honden boilers of 2kw with 6 elements and 2 boilers
Galley and Laundry
Main Galley
- Custom fridge/freezers in (6) cabinets
- (1) Miele professional dishwasher separate door for each compartment
- (1) Gagganeau grill 380mm wide
- (1) Gagganeau WS626-110 plate warming
- (1) Sub Zero 427 wine cooler
- (1) Icemaker
- (1) Industrial meat slicer
- V100 Vacuum sealing machine
Crew Area
- (1) full height Miele refrigerator
- (1) slim line Miele dishwasher
- (1) Miele microwave
Upper Deck Pantry
- (1) full-height refrigerator
Upper Deck Bar
- (1) refrigerator, one icemaker
Upper Deck Skylounge
- (1) wine refrigerator
Guest Lobby
- (1) Dometic HiPro 4000 standard mini-bar

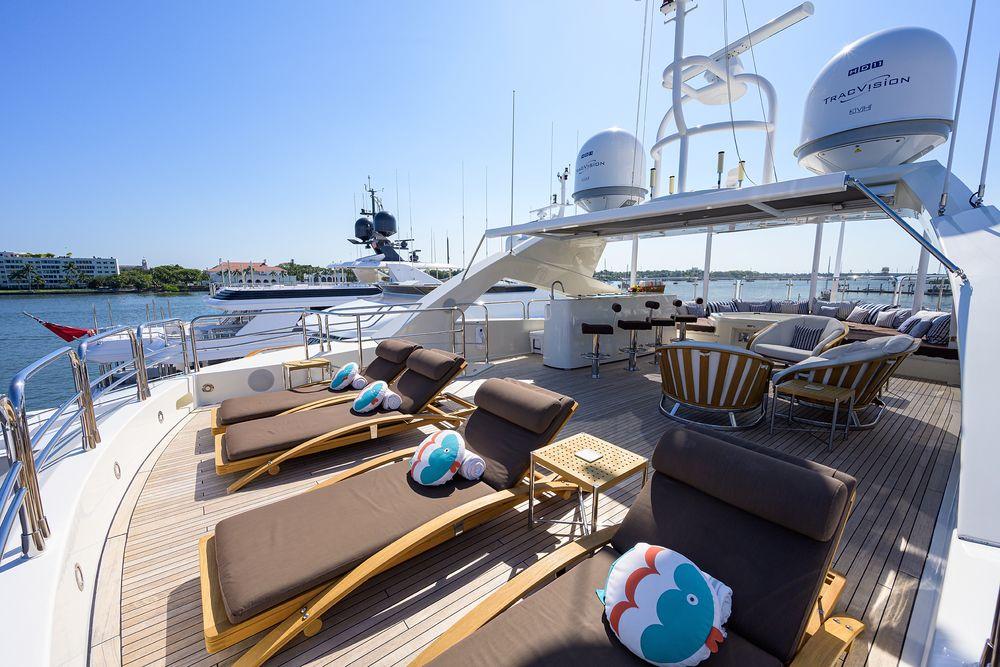

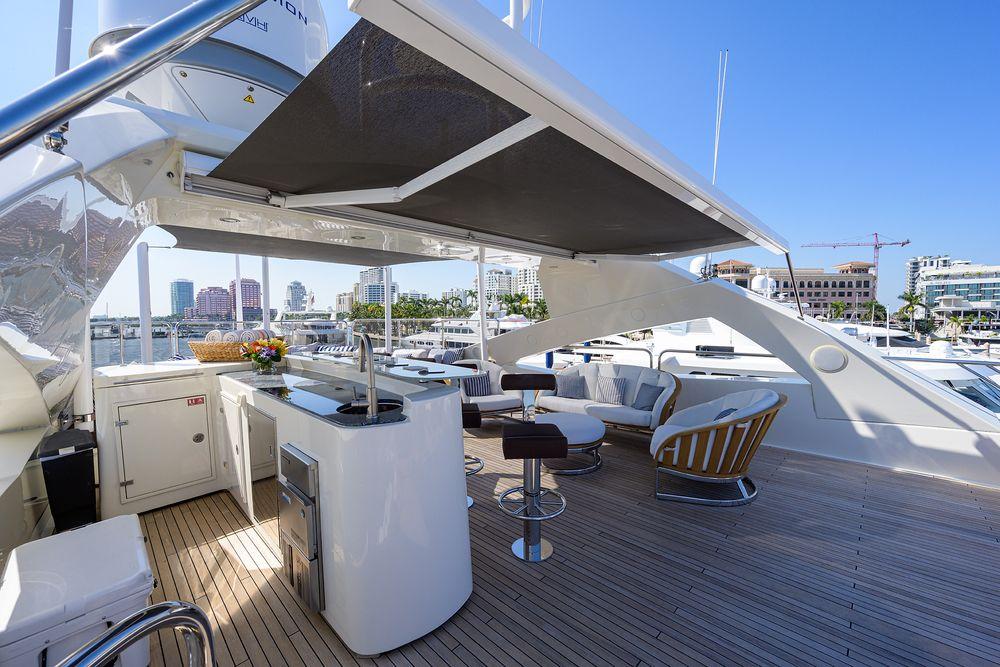

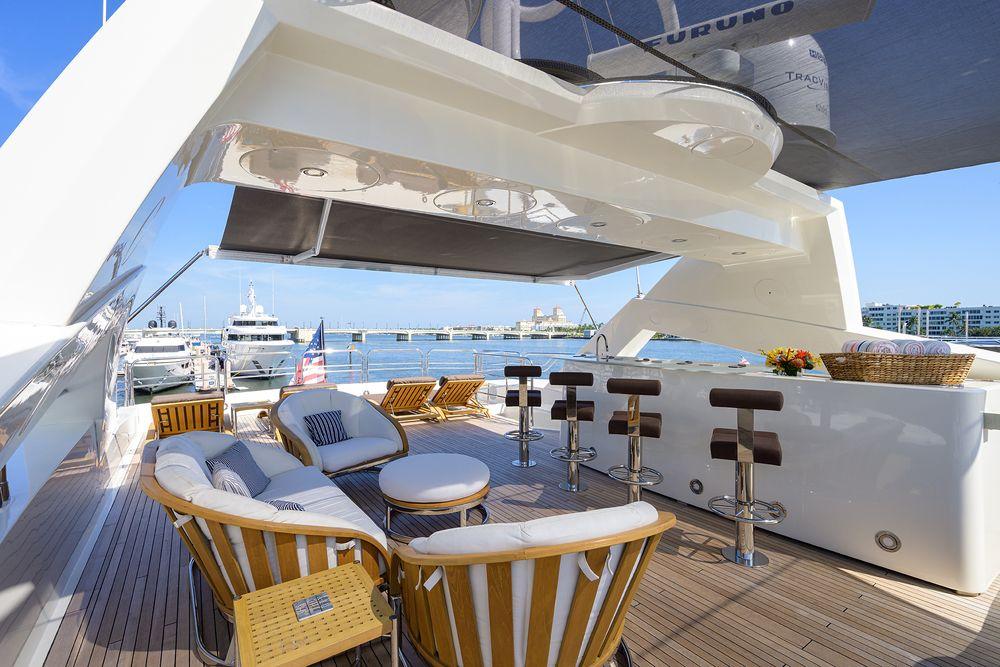

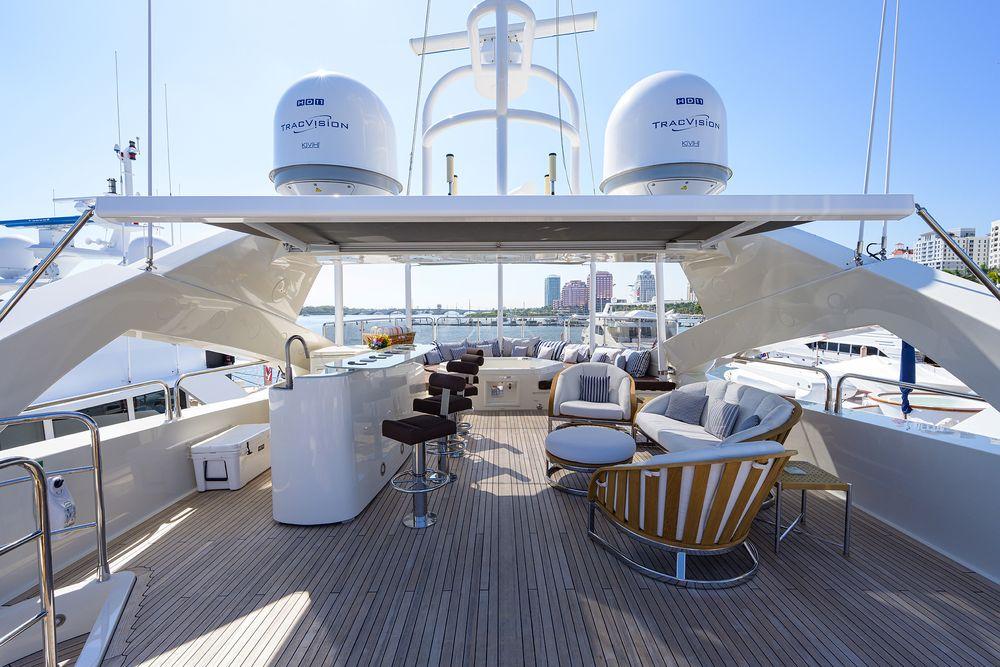

Flybridge
- (1) Liebherr refrigerator, one icemaker
Master Stateroom
- (1) Dometic HiPro standard 4000 mini-bar
Laundry
- (2) Miele professional washing machines
- (2) Miele professional tumble dryers
Communication Equipment
- (2) GMDSS handheld VHFs (including NICAD and lithium batteries)
- (2) Charging unit for GMDSS handheld VHF
- (1) VHF GMDSS card
- (1) TT-3000E SAT C GMDSS system sailor
- (1) Sailor TT-6006 SAT C GMDSS system
- (1) Sailor VHF RT5022 DSC
- (1) Simrad intercom (engine room & crew quarter) RS87 DSC
- Pepwave Modem linked to the yacht wireless network
- (1) Furuno navtex NX- 700
- (6) ICOM VHF Radios
- (2) KVH HD11 TV domes
- ViaSAT high speed satellite internet
- KVH Vsat V3 Tracphone
Navigation Equipment
- (1) Furuno echo sounder FE700
- (1) Furuno GPS GP-150
- (1) Furuno radar RCU-014
- (1) Gyro-compass repeater Simrad AR80
- (1) Simrad HS52 gps SAT compass
- (1) Simrad auto-pilot AP50
- (1) Hydrive steering control
- (1) Furuno Navnet radar VX2
- (1) Sperry Marine Naviknot 0801- 09
- (1) Furuno Universal ais FA-150
- (4) Tijssen screen control panels
- (2) Chart plotters with color display (Transas)
- (2) Besenzoni pilot seats
- Various nautical charts
Entertainment Equipment
- Kaleidescape system fitted for all bedrooms and salon
- Outdoor music played through B&O Amplifiers
- SKY TV in Master, (2) doubles, sky lounge, salon and crew mess
- Master bedroom fitted with B&O Beovision7 screens and (3) iPad controllers
- Twin and double bedrooms fitted with B&O Beovision4
- iPod docks in all guest areas indoors and out
- All guest cabins, crew mess and captain’s cabins control the B&O systems with DVB-HD
- Upper saloon and main saloon B&O Beovision7 screens and Beosound6 controls via iPad
- DVD/CD/iPod/SD players
- Captain’s cabin and crew mess fitted with B&O Beovision4

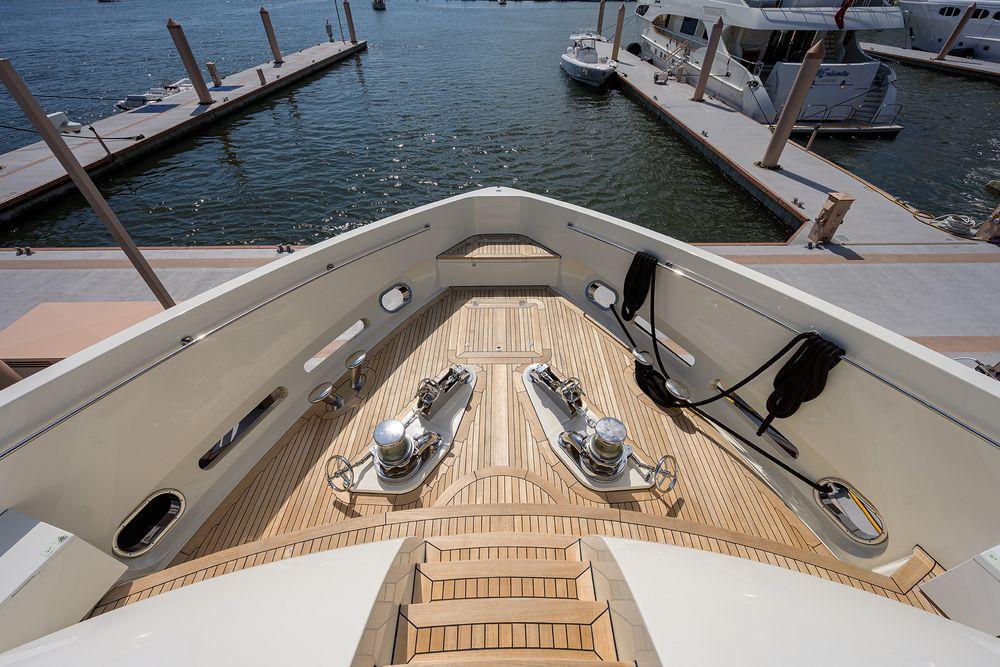

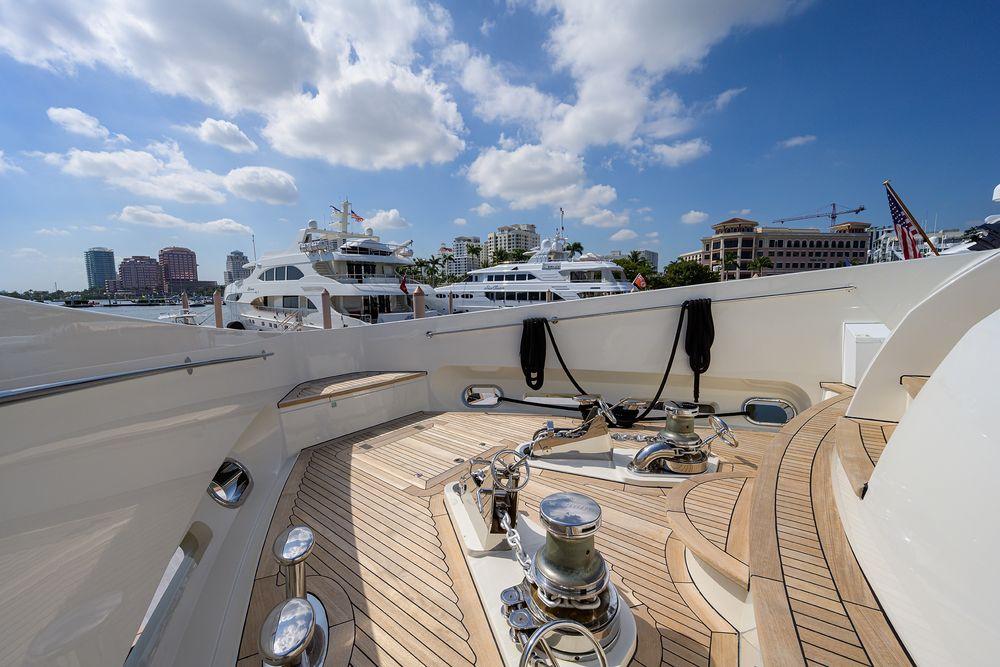

Deck Equipment
- (2) 200kg Anchors
- (2) 125 Meters galvanized iron chain of 18mm

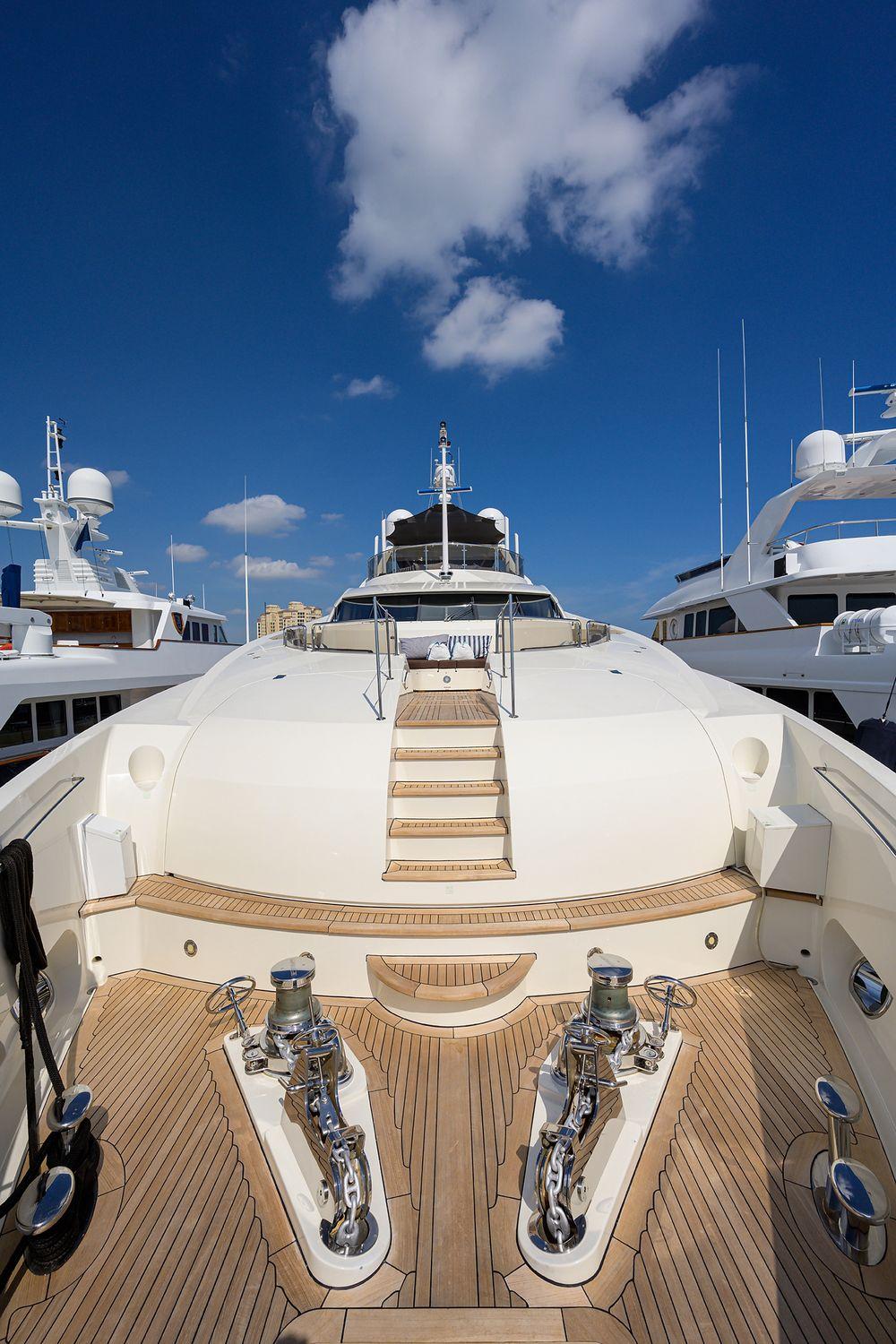

- (2) Muir Type 150 FC 2 P160 B5 windlasses
- (1) Ladder
- (2) Aft deck winches
- (1) Opacmare passerelle Mod.1103
- (10) Fenders with covers
- (2) Inflatable fenders
- (2) 15m Spring lines
- (1) Air blade
- (2) 20m Stern lines
- (1) Tender tow line
- (1) Handheld vacuum
- (27) Throw cushions
- (1) Round teak table with ten teak chairs
- (2) Square teak and stainless tables with six teak and stainless chairs
- (4) Small square teak tables
- (4) Teak sunbeds
- (6) Teak armchairs
- (3) Teak low round chairs
- (3) Teak sofas
- (1) Teak coffee table
- (1) Shoe basket
- (1) Shoe box
- (1) Jacuzzi lid
- (1) Jacuzzi area cover
- (1) Main deck aft cover
- (2) Bridge fwd port and stbd seating cover
- (1) Bridge fwd seating cover
Tenders and Toys
- (1) 6m Pascoe tender with an X Volvo 190hp, XDPS drive
- Jet Skis
Recent Updates
- New surround sound speakers throughout main deck
- New LED lighting – interior and exterior
- New electric blinds in Master stateroom
- New blinds in main and bridge deck salons
- New interior soft goods
- Twins berths now set up as a king (easily swapped back and forth)
- New teak in aft swim platform and door
- New SAT TV and SAT internet system with (2) KVH HD11 ViaSat domes
- New electronics in helm including Furuno Navnet navigation and radar with additional PC running TimeZero and WX Worx
- (2) New Wolf ovens
- (2) 2-burner Cook Tek stovetops New granite countertops
Refit History
- 15-year class survey completed (Jan 2023)
- New teak on bridge deck, aft, bow and Portuguese deck replaced
- New interior hardwood and granite floors on the bridge deck and main lobbies
- New kitchen floor
- (2) air handlers
- (4) new Dometic chiller plant chillers for A/C
- Replaced (2) A/C units
- Replaced sea water pump in the ECR
- Complete top end overhauls to port and starboard generators at approx. 10,800 hours (2022)
- New Atlas shore power converter (2019)
- Repainted hull and new teak on sun deck (2018)
- A/V systems upgraded with iPad control (2018)
- All systems and machinery serviced in early 2018

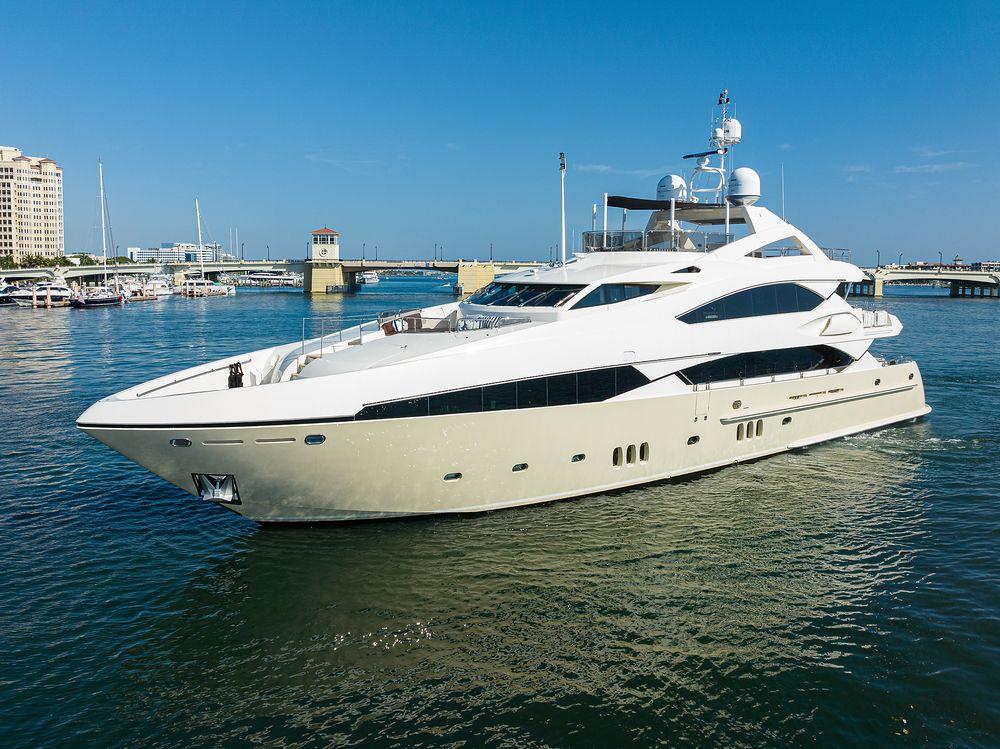

- Length Overall: 121.33ft
- Max Draft: 8.83ft
- Beam: 26.17ft
- Fresh Water Tank: 1307 Gal ()
- Fuel Tank: 7555 Gal ()
Engine 1
- Engine Make: MTU
- Engine Model: 12V4000 M90
- Total Power: 2735hp
- Engine Type: Inboard
- Fuel Type: Diesel
Engine 2
- Engine Make: MTU
- Engine Model: 12V4000 M90
- Total Power: 2735hp
- Engine Type: Inboard
- Fuel Type: Diesel
- Cruising Speed: 16kn
- Max Speed: 22kn
- Hull Material: Composite
- Hull Shape: Planing
- Cabins: 5
- Heads: 7
