- Condition: Used
- YW#: 4062963
- Year: 2023
- Located in: Fort Lauderdale, Florida, United States
The Offshore 54' has proven to be and is regarded as one of the top cruising Pilothouse models in her class. Offshore is now building what promises to be the most refined, detailed and well thought out 54 in existence.
Every facet of the yacht has been thru a detailed audit to find areas for improvement. It's all about the view!!! For example, the master stateroom has added large view windows brining in tons of light. A lovely, soffit over the berth is an appealing design detail and also serves as an A/C vent to cool the cabin quickly and efficiently. The former A/C ducting channels have disappeared creating more open space to enjoy. Beautiful teak paneled columns from the berth that speak clearly and affirm the high quality throughout.
The salon has a new layout with the entertainment/TV aft - which allows more space for comfortable seating, proper viewing angles for all on board from the galley to the pilothouse. Strategic lower cabinets add to the feeling of open space tying the inside to the outside.
The standard specifications are filled with premium quality gear like Optimus electronic steering, SeaTorque enclosed shaft system to make running most comfortable while reducing maintenance costs.
Enhancement of detail after detail insures that the Offshore 54 will continue to lead in bringing our clients an amazing overall yachting/cruising experience.
Cabins: 2
Heads: 2
Manufacturer Provided Description
Offshore Yachts is thrilled to present the newest Offshore 54' Pilothouse. We have assembled our best design team with over 100+ years combined boat building, commissioning and service experience. Keeping in mind, “How do our owners use their boat?!” Our team performed a thorough design review with one main directive, “How can we make it better?” As a result, this 54' Pilothouse will surely be the finest Offshore to date.
Construction and Design
YACHT CONSTRUCTION AND DESIGN
- Semi displacement hull with a fine deep vee bow entry and raised spray chine
- Full length keel for directional stability and propeller protection
- Prop pockets to reduce propeller draft and increase efficiency
- Underwater exhaust
- High quality vinylester resins for osmosis protection
- Fiberglass cored composite hull construction with high density Gurit 100 PVC and solid FRP at transducer locations
- All thru hulls and underwater penetrations surrounded by solid FRP
EXTERNAL DESIGN FEATURES
- Tinted tempered UV resistant window glass, 8mm at side and aft, 12mm clear at forward
- Exterior finish in high gloss, low VOC Polynt gel coat
- Waterline boot stripe in high gloss, low VOC Polynt gel coat in color of customer's choice
- Seahawk epoxy barrier coating and bottom paint with limited 3 year osmosis warranty
- Molded & gel coated finish of FRP hatches & doors
- 316 stainless portlights
- Molded FRP rub rails capped with solid 316 stainless steel
- Distinctive molded-in surface lines at hull and decksides
- Recessed door handles on hull and cockpit boarding doors
SUSTAINABLITY AND EFFICIENCY
- Aluminum honeycomb construction of all standard stone counters for 80% weight savings
- Low VOC paints, gel coats, varnish and adhesives
- Solar produced power at building facilites
- Recycle-generated water at building facility testing tanks
Exterior Decks and Features
MAIN DECK
- Walkaround decks with high midship bulwarks
- Exterior 316 stainless screws, bolts & nuts, welds ground & polished
- 1 1/4" 316 stainless steel handrails with welded joints at forward deck & boat deck.
- Molded foredeck seat with storage
- Port and starboard bulwark doors
- Manship overhead hatches with Oceanair sliding screens & shades
- Manship 316 stainless port lights
- 316 stainless hawse holes with cleats, bow chocks & deck cleats
- Aluminum re-inforced exterior doors, exterior covered w/ FRP & gel coated, interiors covered w/ matching interior wood, stainless steel door frames
- Bow & stern flag staffs with 316 stainless sockets
- Rode locker for optional 2nd anchor
- Provision for 2nd anchor with dual 316 stainless channels and rollers
- Forward deck hatches at bow
- High pressure fresh water wash down at bow
- Stainless latches at all exterior cabinet doors
- Nonskid at all hull door thresholds
COCKPIT AND SPORT DECK
- Cockpit engine & thruster controls, JMS joystick, rudder indicator with engine start-stop switches
- Starboard cabinet with lift top to cover engine controls, thruster, and JMS joystick
- Port aft deck storage cabinet with covered sink
- Ventilation grates for exterior cabinets
- 316 Stainless cockpit to boat deck ladder with 316 stainless Manship hatch
- Lazarette access hatch with electric / hydraulic lift and ladder
- Hand held shower at cockpit
- High pressure fresh water wash down at cockpit
- Swim platform with 2 removable stainless 2 1/2" diameter U-handrails
- 316 Stainless pop up cleats at swim platform
- 316 strainless swim ladder at swim platform
- Rope ladder at sport deck for emergency re-boarding
- Dockside fresh water connector & regulator
- Single transom door
- Scupper flaps
- Two LED 24 v cockpit flood lights
- Cockpit storage bins w/drains
- Vimar outlet at cockpit cabinet
FLYBRIDGE AND BOAT DECK
- Manship hatch access to & from pilothouse
- Helm station with complete engine instrumentation, function alarms & rudder indicator
- Stainless destroyer type wheel
- Venturi windshield with 316 stainless frame
- Two Pompanette AS21 Helm chairs with stainless steel bases, footrests and Sunbrella upholstery
- FRP “L” seat with storage underneath
- Two tables with 316 stainless supports posts
- Starboard cabinets with sink, stainless steel Isotherm 85 refrigerator
- FRP radar arch with down lights
- Steelhead ES1000 1000lb telescoping davit with hydraulic rotation, boom and cable functions
- Boat deck drained to waterline with intregral drains and scuppers
- 1 1⁄4” 316 stainess handrails at boat deck w/welded s/s life lines
- Manship s/s hatch and s/s ladder to cockpit with s/s safety rail
- High pressure fresh water wash down at flybridge
- AFI dual air horn
- SS Cupholders at flybridge
- (4) Hella courtesy lights at flybridge
Premium Launch-Ready Package
- Revere Crewsaver 6 person Type 1 ISO life raft
- One Orion Floating Locator SOS Beacon
- One Orion Coastal Alert/Locate Marine Flare Kit
- Six Type 1 Mustang Survival HIT Automatic Inflatable Offshore Life Jackets
- Six Type 2 West Marine Cruiser Life Jackets
- One U.S.C.G Approved Hard Shell 30" Life Ring
- Two Kidde Pro 5MP Type B1 Rechargeable Fire Extinguishers
- Two Kidde Mariner Rec5 5BC Type B 1 Fire Extinguishers
- Orion Voyager First Aid Kit
- One 8" Chrome Ship's Fog Bell
- Four Polyform HTM Fenders
- Six 3/4" 35' Double Braided Dock Lines
- U.S.C.G. navigation rules

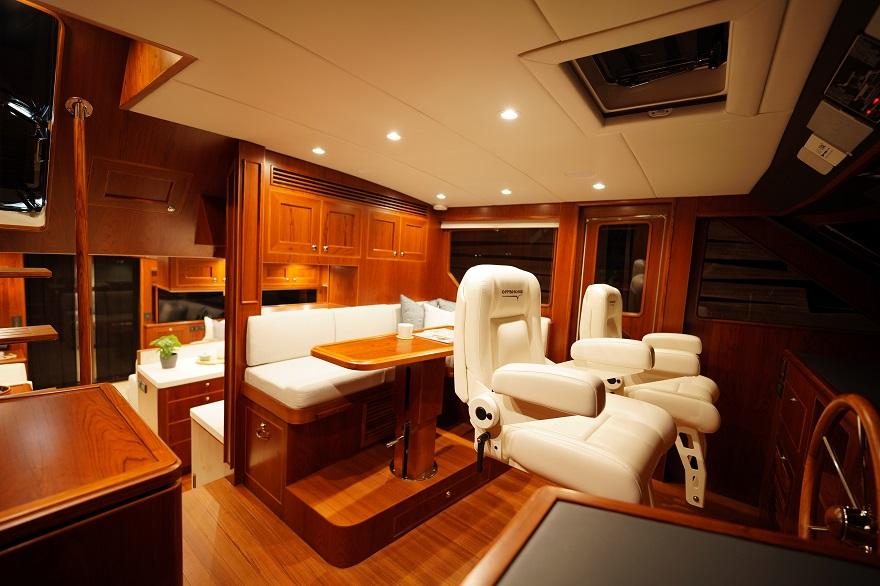

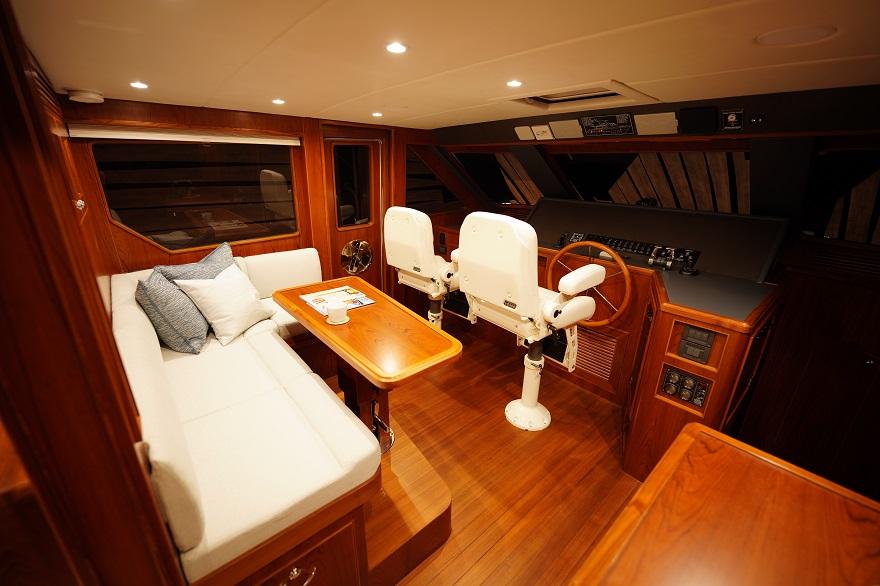

Pilothouse
- Helm station with complete engine instrumentation, function alarms & rudder indicator
- Teak & stainless steel destroyer type wheel
- Pilothouse indicator panel for systems readiness
- Maretron tank indicator sensors for fuel, water and holding tanks 5.7" monitor
- Back lit AC & DC distribution/breaker panels
- Rocker switches with indicator lights for bilge pumps, lighting & other functions
- Three stainless Exalto articulating windshield wipers w/washer system
- Interior stairway to flybridge with 316 stainless Manship hatch
- Port and stbd FRP doors with 316 stainless frames
- One ventilation overhead hatch with “Oceanair” sliding screen/shade
- Two Stidd 500-200 helm chairs upholstered in Ultraleather and matching powder coated bases
- Raised “L” settee with manual high low table
- Upper storage cabinets above settee
- Padded vinyl at forward helm console counter top
- Engineered hardwood sole
- UV protectant varnish on all console veneers
- Padded soft vinyl removable headliner
- Starboard storage cabinet
- U-Line UHFZ124-SS01A undercounter convertible refrigerator
- Solid wood compass base
Interior Accommodations

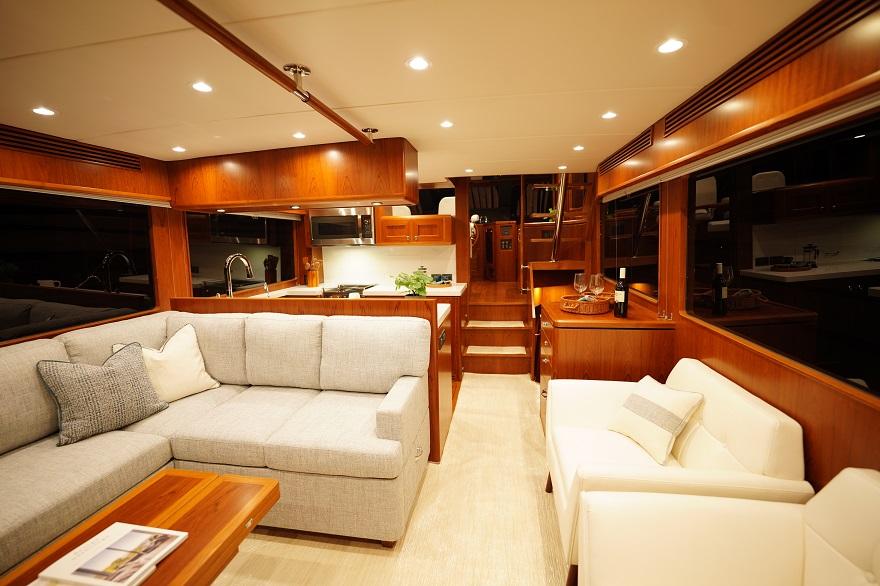

SALON
- Dual large aft salon sliding doors with full height glass panels
- Low large windows for sit down visibility
- "L" or "U" settee in salon
- Manual high low coffee table with hinged leaves
- Solid wood crown molding surrounding salon
- Padded soft vinyl removable headliner
- Secondary engine room access from salon hatch/ladder

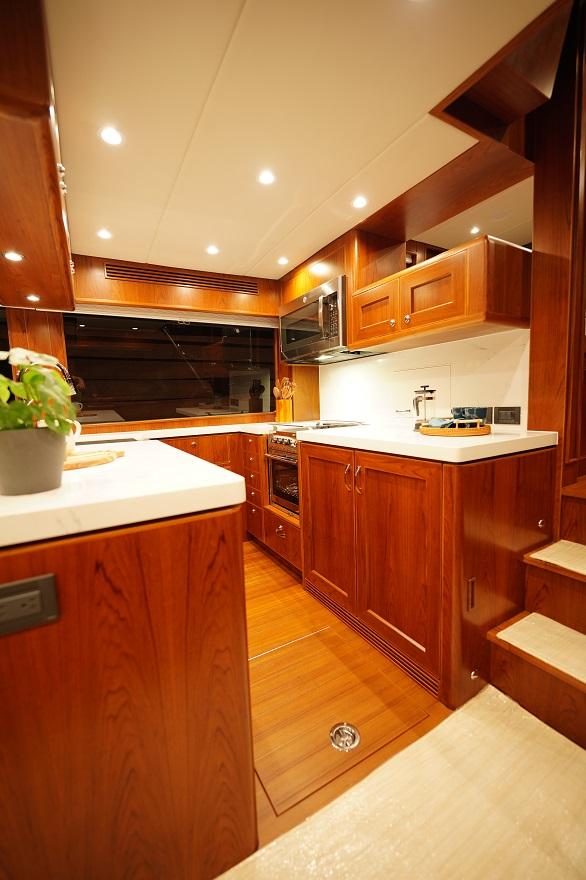

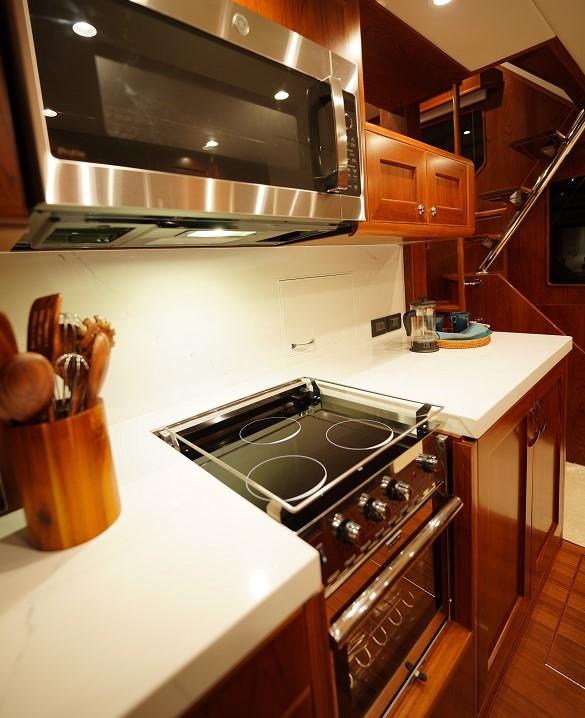

GALLEY AND APPLIANCES
- Granite counter tops with overhead storage cabinets
- Single basin stainless steel sink
- Grohe sink faucet
- Insinkerator 1hp strainless garbage disposal with top switch
- U-Line UHFZ124-SS01A undercounter convertible refrigerator
- U-Line UHFZ124-SS01A undercounter convertible freezer
- Force 10 65336 220V oven/cooktop
- GE trash compactor
- GE stainless microwave/convection oven with cooktop exhaust
- Drawers & cabinets fitted with push lock latches & lined with Formica
- Padded soft vinyl removable headliner
- Engineered hardwood sole

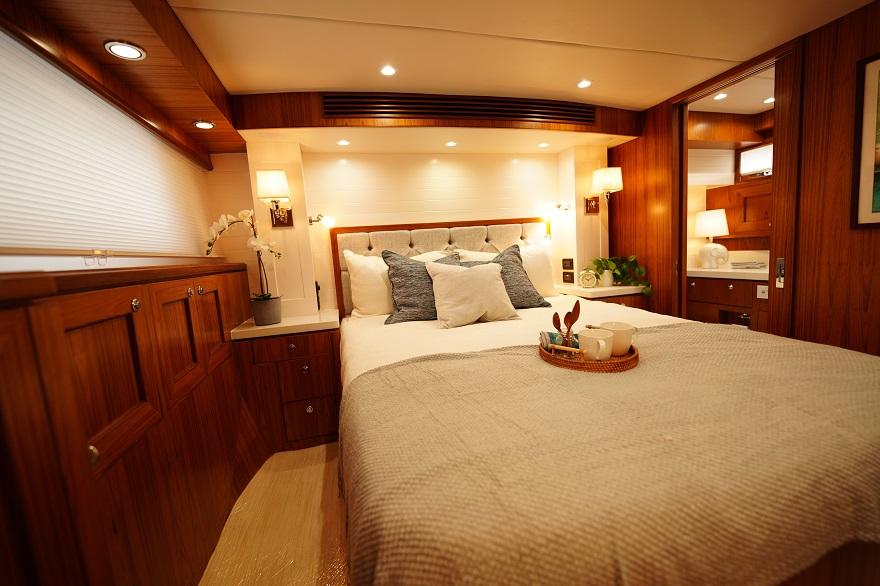

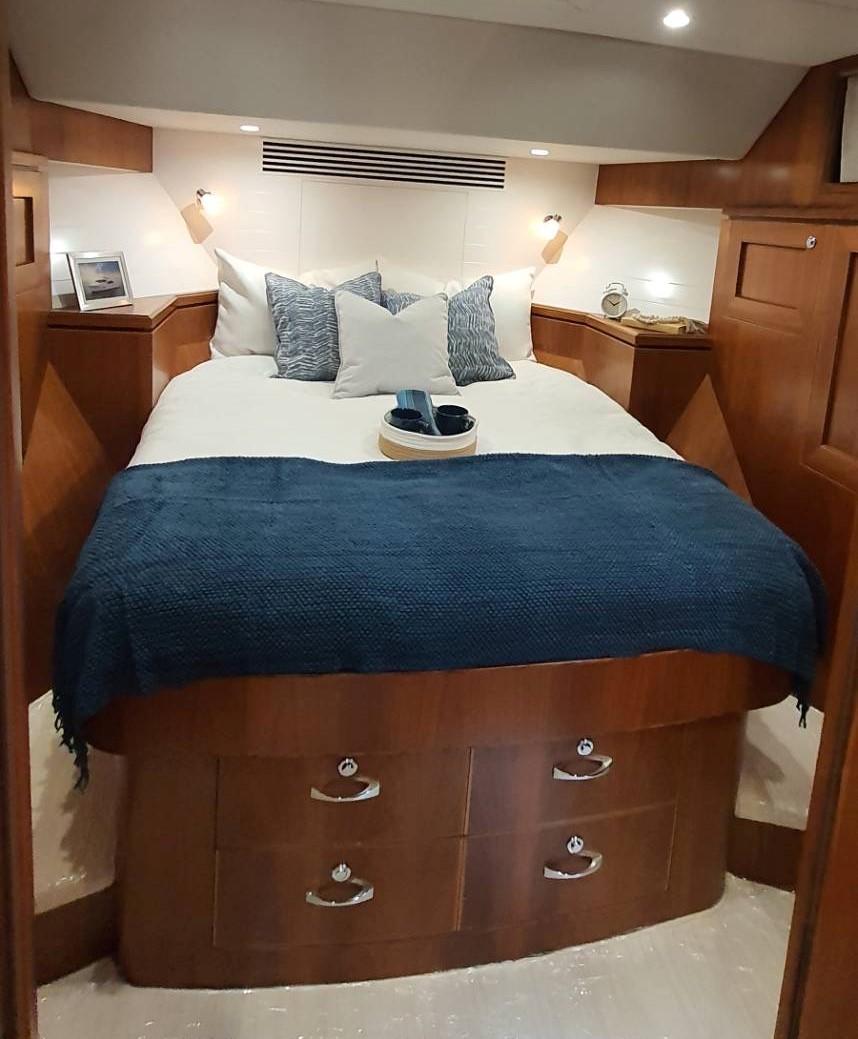

OWNER’S STATEROOM & HEAD
- Choice of private access to master or additional starboard storage cabinetry
- Queen size walk around bed with drawers & lockers under
- Cedar lined hanging lockers with automatic lighting
- Two LED reading lights over berth with dimmer
- Safety escape hatch at overhead
- Padded soft vinyl removable headliner
- Xtra large view window
- Full length mirror
- Solid granite or marble head counter top
- Granite or marble seat in shower
- Grohe faucets, towel bars and towel rings
- Shower with frameless glass door and integrated towel bar
- Head ventilation blower
- Engineered hardwood or custom tiled sole at head
FORWARD GUEST STATEROOM & HEAD
- Queen size berth, hinged for storage and drawers below
- Cedar lined hanging lockers with automatic lighting
- Two LED reading lights over berth with dimmer
- Opening 316 stainless port lights
- Padded soft vinyl removable headliner
- Solid granite or marble head counter top
- Granite or marble seat in shower
- Grohe faucets and towel rings
- Shower with frameless glass door and integrated towel bar
- Full length mirror
- Head ventilation blower
- One Manship overhead ventilation/escape hatch with
- Oceanair sliding screen
- Engineered hardwood or custom tiled sole at head
Deluxe Turnkey Decor Package
INTERIOR
- Durable woven carpet with Soundown carpet underlayment pad in salon and cabins
- Custom off-white duette window shades at main deck and cabin portlights and windows
- Custom off-white waterproof curtains at master & VIP shower portlights
- Custom tiled backsplash at galley
- J.A.Henckels Silver Cap stainless full tang kitchen knife set with storage
- J.A.Henckels 18/10 stainless cutlery & service set with storage
- Salon settee custom upholstered with accent pillows
- Two upholstered occasional chairs at salon
- End table lamp at salon
- Pilothouse settee custom upholstered with accent pillows
- Pilothouse console counter and equipment console wrapped in hand stitched Ultraleather
- Custom painted lapstrake design feature at master berth wall with upholstered padded headboard Wall sconces at master berth wall nightstand columns
- Custom painted lapstrake design feature at master head walls
- Marble mosaic tiled soles at master head and shower
- Hand made spring & memory foam mattress at master cabin
- Custom bedding and pillow covers at master cabin
- Custom painted lapstrake design feature at VIP berth wall
- Hand made spring & memory foam mattress at VIP cabin
- Custom bedding and pillow covers at VIP cabin
- Custom painted lapstrake design feature at VIP head walls
- Marble mosaic tiled soles at VIP head and shower
EXTERIOR
- Flybridge settee custom upholstered in Sunbrella materials with custom accent pillows
Mechanical and Electrical Systems
MECHANICAL
- Twin MAN i6 850 CRM 850HP with ZF 500A gears
- Two internal 24v alternators supplied by engine manufacturer for start banks
- Seatorque M4-275 enclosed shaft system with Aquamet 22 HS shafts
- 3 Station ZF Smart Command electronic controls
- ZF Joystick Maneuvering System with i-anchor and 3 joystick
- Optimus EPS electronic power steering
- American Bow Thruster Trac 220/4.5' hydraulic stabilizer system with pto
- American Bow Thruster 25 hp hydraulic bow/stern thruster system with pto
- Proportional ABT thruster controls
- 54" trim tabs with controls at pilothouse and flybridge
- 316 stainless (w/316-L rod) exhaust risers with zinc plugs connecting to FRP underwater exhaust system w/bypass pipes to Aqua Quiet mufflers
- Larger 34" expanded ratio, computer designed propellers
- Bronze V struts
- Hydrodynamic 316 stainless steel rudders per design
- Aquamet or Aqualloy #22 stainless steel rudder posts
- Tides rudder shaft seal and bearings
- Engine room start & stop panels with engine gauges
- Visual & audio alarms for engine systems at pilothouse & flybridge
ELECTRICAL SYSTEM
- Northern Lights 12 kW diesel generator, 24v start with sound shield & gas/water exhaust separators and E-A-R anti vibration mounts
- Four Lifeline 8D glassmat main engine start batteries (24v)
- One Lifeline 4D glassmat generator start battery (24v)
- Six Lifeline 8D glassmat batteries for ship's 24v system
- Battery crossover for main engines and generator batteries
- ANG 12.5 KVA 50 amp isolation transformer
- Mastervolt Mass Combi 24/3000, 120/240v 60 HZ inverter charger with interface cable and high temp. shut down with remote panel at pilothouse
- Mastervolt battery systems charger - 24/100-3
- Mastervolt engine start battery charger - 24/20-3
- Battery Mate 1602 at each main engine
- 24v & 12v LED back-lit distribution/circuit breaker panels with amp & volt meters
- 120v & 240v led back-lit distribution/circuit breaker panels with amp & volt meters
- Two 50 amp Mastervolt 24v to 12v converters
- Glendinning Cablemaster
- Marinco Shore power 125/250v-50A inlets port & stbd side (or fore & aft)
- One Marinco 50' 50amp 125v/250v shore power cord
- ELCI breakers at shore power inlets
- IMTRA 24v LED overhead lighting throughout interior
- IMTRA 24v LED overhead lighting throughout exterior
- 24v LED interior safety lights
- 24v LED exterior safety lights
- Vimar interior switches, dimmers, and outlets
- GFI breaker protection as appropriate at deck, galley, heads, engine room & lazarette
- AC & DC breaker protection near each source
- Electrolysis bonding & grounding system with two sacrificial zinc plates
- Tinned, UL approved, high temperature wiring
- LED dome lights in bow thruster compartment
- Hella LED navigation lights
- Prewiring for IP cameras at engine room and cockpit
- NMEA 2000 cable installed in boat for easy integration of electronics and navigations systems
Yachtkeeping Package
- Dyson V8 cordless vacuum
- Black & Decker Lithium hand vacuum
- Two Teknor Apex 50' collapsible hoses with spray nozzle
- Extendable pole with brush, mop and squeegee attachments
- Meguiar's biodegradable boat wash
- Washdown chamois
- Simple Green
- Brite Boy stainless polish
- Nevr-Dull metal polish
- Sprayway glass cleaner
- W-D40
- Length Overall: 57.25 ft
- Max Draft: 4.67 ft
- Beam: 15.83 ft
Engine 1
- Engine Make: MAN
- Engine Model: I6 850 CRM
- Total Power: 850 HP
- Engine Type: Inboard
- Fuel Type: Diesel
Engine 2
- Engine Make: MAN
- Engine Model: I6 850 CRM
- Total Power: 850 HP
- Engine Type: Inboard
- Fuel Type: Diesel
- Cruising Speed: 19 kn
- Max Speed: 22 kn
Disclaimer
The
